Unable to update BIOS on my SER5 Pro

yogurt2904

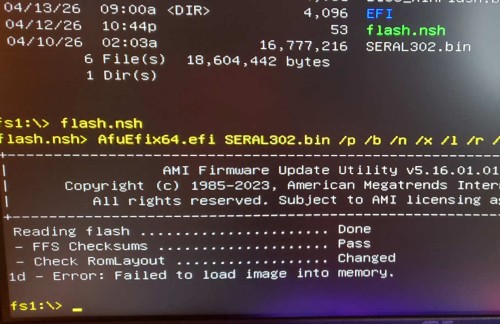

Following the steps located on Beelink’s website Here, I get an error message stating “Error: Failed to load image into memory.”

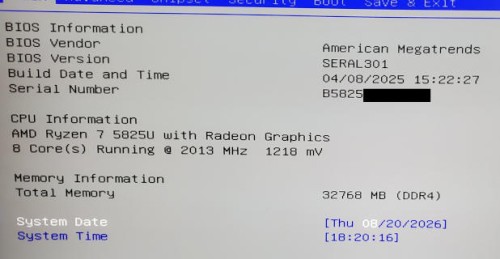

Here is my current BIOS version.

I also tried different BIOS’s on the website for the SER5 Pro, but all of them returned the same error when flashing.
What BIOS version should I download in order for it to flash correctly?

Beelink CS-June

yogurt2904

Hello there,

Could you please take a photo of the complete page that appears when updating the BIOS and send it to us?

The page you provided earlier seems to have some command lines obscured.

May I ask if you have placed the BIOS file in the root directory of the USB drive?

Have a nice day~

yogurt2904

Good morning,

Here is a photo of the complete page. Yes, all files are in the root directory.

Beelink CS-June

yogurt2904

Hello there,

Thanks for your reply~

Please try removing the “/capsule” option after “flash.nsh” in the command. That is, please use the command “AfuEfix64.efi SERAL302.bin /p /b /n /x /l /r” to update the BIOS.

Have a nice day~

yogurt2904

Beelink CS-June

Unfortunately when typing in the command and entering it, it will automatically put the “/capsule” option.

Beelink CS-June

yogurt2904

Hello there，

Could you please try to manually delete the “/capsule” information after the command completion?

Have a nice day~

yogurt2904

Beelink CS-June

I cannot delete it. When entering “flash.nsh AfuEfix64.efi SERAL302.bin /p /b /n /x /l /r”, it will automatically put the “/capsule” in the executed command.

Beelink CS-June

yogurt2904

Hello there,

Could you please tell me if you have ever tried re-downloading and re-activating the BIOS file, and if so, did it solve the same problem?

Perhaps you could consider sending the machine back to China for testing?

This is our customer service email address - support-pc@bee-link.com

Have a nice day~

yogurt2904

Beelink CS-June

Good afternoon,

I tried re-downloading the BIOS file, but I still gave the same error message. Is there a link to other BIOS files I can try to download before emailing customer support?

Beelink CS-June

yogurt2904

Hello there,

I have sent the BIOS file for you, please check your PM.

Have a nice day~

yogurt2904

Beelink CS-June

Thank you. The provided BIOS does flash, but I get a warning stating that it does not match the system BIOS.

Beelink CS-June

yogurt2904

Hello there,

Thanks for your reply~

During the BIOS update process, when the machine displays a warning message page, please select “Press E” and continue with the BIOS update.

Have a nice day~
