mini s bios update

Lhtex

Dear Suport,
Please send me the new files for me to update my bios.
Model: Mini S N5095
Bios: JTKT001 ×64

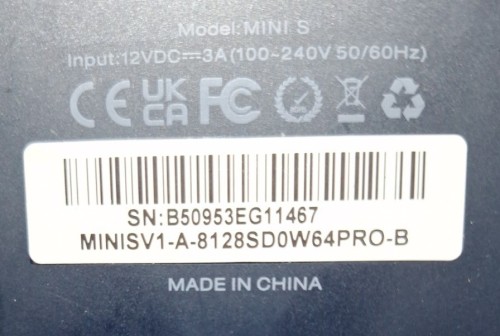

Following my actual bios and model photos:

Image description

Thank you,

Beelink CS-George

Lhtex Hi there, your BIOS is the latest ,no need to update it

taraxtaxtax

Hello! I have a problem with starting pc with that model. It’s not starting after pressing the button. I think I need to reinstall BIOS. Can you send me the files to it?
Image description

Beelink CS-George

taraxtaxtax Hi there,

Here is the possible solutions ：

① Please turn off the PC , unplug the power supply, and put the pin in the CMOS pinhole and press it for about 10 seconds , restart the PC after ten minutes.
Here is the tutorial https://mega.nz/file/XypwTISY#DVT0BsjOgiPkZ-drQaj88JH9Z7f7qpKGP2E3nMHW8ms

② You can also try to update the BIOS. Here is the BIOS https://url.bee-link.cn/7AE3 Here is the tutorial https://url.bee-link.cn/wiDW

Atechtronic

I have the same problem

support11

Atechtronic Can you provide a picture of the machine’s SN code and the main page of the bios? We can confirm whether there is a bios update available.
This is a tutorial for checking the bios: https://mega.nz/#F!yuISGa4I!s1bQQajKwnsEdzjqq4nopQ
Looking forward to your reply, wish you have a nice day

OlegAb

Здравствуйте. Hello! I have a problem with starting pc with that model. It’s not starting after pressing the button. I think I need to reinstall BIOS. Can you send me the files to it? Image description

Beelink CS-Bony

OlegAb
Sorry for the trouble.
Don’t worry, the PC has one-year warranty. Please send us a picture of the purchase record. Here are some potential solutions: First, Please turn off the PC , unplug the power supply, and press the CMOS button (if no CMOS button, please put the pin in the CMOS pinhole and press it ) for about 10 seconds , restart the PC after ten minutes. Here is the tutorial https://mega.nz/file/XypwTISY#DVT0BsjOgiPkZ-drQaj88JH9Z7f7qpKGP2E3nMHW8ms or https://url.bee-link.cn/5FdW If the problem persists, please try other solutions:

①Please change another HDMI cable or power supply.

②Please take out the RAM ,please clean the contacts of the RAM with a rubber. Here is the tutorial https://url.bee-link.cn/AzzB or https://mega.nz/file/7nwDmCaL#UyzSmVkqJG8HW9dhjHhLkkzdP9gt2Br3xyCG1SCdbrA

③ Please take out one RAM and leave the other one in it to test if the RAM is defective or not. When testing, please turn on the PC, and wait about one minute, if you can go to the system, Please repeatedly press delete key as soon as your restart the PC, go to BIOS. Go to Boot option, enable fast boot, press F4 to save.

④Please check if the fan spins?

⑤Please tell us if the Keyboard light is on ?(Very important). If the keyboard light is on, it should go to the system, we need to troubleshoot HDMI or the monitor.

Please repeatedly press delete key as soon as you turn on the PC, go to BIOS. Please send us a picture of the Main page, we will check if you need to update the BIOS.
If an update is needed, we will send you the correct BIOS file and tutorial.

Fert_aquino

Hello, I need some help. I think my BIOS might be bricked.

The issue
When I power on the mini PC, the Beelink boot screen does not appear. The monitor stays black, but with the backlight on. The PC power LED turns on and the fan spins, but the system does not start.

It only booted once — a blue screen flashed very quickly and then went black again, and I couldn’t do anything.

What I have already tested

Replaced the CMOS battery with a new one.

Tried booting without the SSD.

Tested a different RAM module:

Notebook RAM in the mini PC → did not work

Mini PC RAM in the notebook → worked normally

Tested another battery (from my notebook) in the mini PC → did not work

Mini PC battery in notebook → worked normally

Tested with another HDMI cable and another monitor → same result

Image description
Can you help me understand what could be happening or what else I can try next?

support11

Fert_aquino Sorry for the trouble.

Based on your tests, here are the remaining troubleshooting steps to help you further pinpoint the BIOS or hardware issue:

Perform a “complete CMOS reset” (different from simply replacing the battery): Turn off the computer and unplug the power cord. Press and hold the CMOS button (or insert a needle into the CMOS pinhole) for 30 seconds (more thorough than the usual 10 seconds). Wait 5 minutes before plugging in the power and turning on the computer. Tutorial reference: https://mega.nz/file/XypwTISY#DVT0BsjOgiPkZ-drQaj88JH9Z7f7qpKGP2E3nMHW8ms or https://url.bee-link.cn/5FdW
Check the keyboard indicator lights (a key point): After powering on, observe whether the indicator lights on the external keyboard (such as the Caps Lock key and Num Lock key) are lit.

If the light is on: This indicates that the motherboard and CPU have started normally, and the problem is most likely in the display output link (not a bricked BIOS).

If the light is off: Further investigation is needed to check the motherboard power supply or underlying BIOS issues.

Clean the memory contacts + test a single module (detailed operation):Remove all memory modules, repeatedly wipe the gold contacts with an eraser (to remove the oxide layer), then reinsert a single memory module (try a different slot), and test if there is any response upon powering on.
Observe the fan status: Does the fan continuously rotate after powering on, and is the speed normal?

If the fan rotates for a while and then stops/does not rotate at all: This may be due to an abnormal motherboard power supply. You can contact our after-sales email for assistance: support-pc@bee-link.com

If the fan rotates normally but there is no display: BIOS failure is highly probable.
