SER9 255 powered via USB-c

rojer64

Hi, On the market for this mini pc (SER9 255). It will replace my laptop, which is connected to a monitor via TB4/usb-C. It gets its power (96W max) as well as USB data while sending video data, all in one cable. Will the SER9 have no trouble with this setup?
Also, can I order 64gb RAM instead of 32?
Thanks
Roger - France

Beelink CS-June

rojer64

Hello there,

I’m very sorry that we don’t have information about launching the 64G RAM version of SER9 225 for the time being.

It is suggested that you pay attention to the information on our official website.

Regarding the USB-C interface of the machine you inquired about, if the PD power supply you are using exceeds 100W and your monitor is powered separately, then the USB4.0 interface of the SER9 can meet the requirements you inquired about.

Have a nice day~

rojer64

HI, I installed a SER9 with R7 H755 and it runs fine with a single cable from the monitor without having to tweak the bios. The SSD runs at PCIe gen 3 though. I replaced the SSD with a Samsung 980 pro and benchmarks are not right; by half…
The AMD software doesn’t report a firmware or driver update, nor does the samsung software. What do I miss?

Otherwise,this is a fine computer, was up and running under 10 seconds of unboxing, which is a new experience :)

rojer64

typo: I meant 255, not 755. This is the SER9 non pro. I can’t figure out what is wrong with the Windows configuration, running at Gen3 on a factory install. Windows seems to have snuck in a driver update for AMD, labeled “Advanced Micro Devices, Inc - System - 1.0.19.0” without any mean to rool back or even identify the device in cause.

Beelink CS-Bettie

rojer64
Thank you for your reply.
Have you tested the speed of your newly installed Samsung SSD? What are the specific speed results?

rojer64

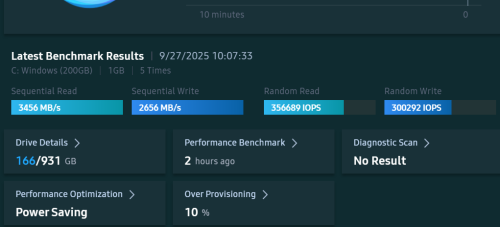

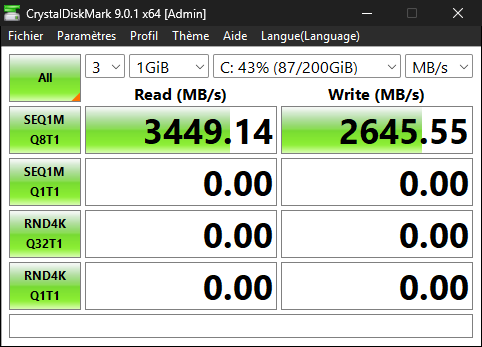

HI, thanks for this. Speed is about half the expected : in both samsung magician and crystal drystal dislmark, 355/2700 R/W,
Image description

Image description

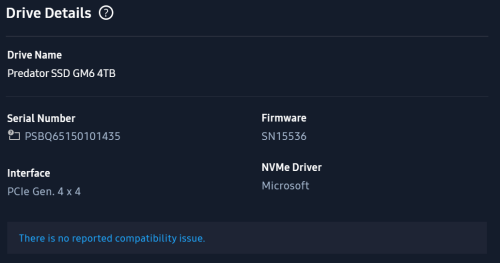

What I find puzzling is that a SSD slot 2 displays Gen4×4 in Samsung software and operates faster than the 980 in slot 1, despite having no dram at all.
Image description
Maybe I should try swapping M.2 slots?

rojer64

It appears, the pc is fine and the SSD is defective. I reinstalled the original SSD: back to normal. Sorry about that.

Beelink CS-Ian Chan

rojer64
Hi there
No problem
Please let me know, If you have any query , I am glad to help.
Your satisfaction is our top priority !
