SER9 PRO AMD Pro Ryzen™ AI 9 HX 370 ACPI BIOS bugs

Beelink CS-June

mss

Hello there

I have sent the BIOS file of solving the ACPI problem for you , please check your PM.

Regarding the WiFi malfunction issue you previously reported, our R&D team has tested it and found no problem.

They suggest that you could try restarting the system.

Have a nice day!

TimH

Hello there,

Could you please send us a picture of SN code at the bottom of machine?

Please repeatedly press delete key as soon as you turn on the PC, go to BIOS.

Please send us a picture of the Main page, then we can help you better.

Have a nice day~

TimH

Beelink CS-June
Hi,

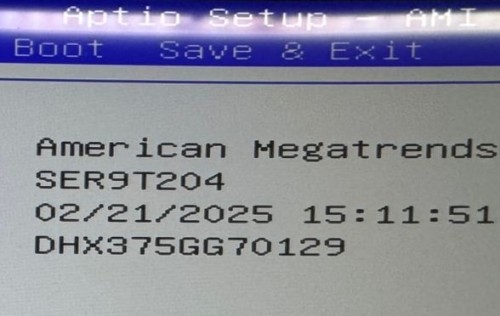

Serial number and BIOS info as requested.
Thanks,
Tim
Image description

sojer2005

@mss

I am curious about the results. Compatibility with Linux is very important to me.

AndrewC

Hi there, I’m experiencing the same issue on my SER9 AMD Ryzen “AI” HX 370 w/ Radeon 890M under BIOS version SER9T204. I am willing to try a new BIOS to fix the issue. Is a new BIOS available for my particular unit?

Details below.

Label underneath unit
BIOS summary screen

Symptoms summary

When booted into Linux, pressing the power button briefly (< 0.5 s) has no effect whatsoever. I would expect it to shut the machine down in a default configuration.
When booted into Linux, issuing systemctl suspend does not suspend the device. Instead, the fan starts running at 100% permanently, the suspend attempt fails, and ethernet[¹] is disconnected until the next reboot. The system becomes unworkable as a network device, but can still be accessed from the console and shut down manually with shutdown.

[¹]: and WiFi too apparently, but I’m not testing that yet. The log lines show that something bad is happening to both r8169 and iwlwifi involving power states at suspend time.

Log messsages

Log during boot, showing “ACPI BIOS Error (bug)” lines

 [    0.205400] acpiphp: ACPI Hot Plug PCI Controller Driver version: 0.5
 [    0.205400] PCI: ECAM [mem 0xe0000000-0xefffffff] (base 0xe0000000) for domain 0000 [bus 00-ff]
 [    0.205400] PCI: Using configuration type 1 for base access
 [    0.205400] kprobes: kprobe jump-optimization is enabled. All kprobes are optimized if possible.
 [    0.205400] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
 [    0.205400] HugeTLB: 16380 KiB vmemmap can be freed for a 1.00 GiB page
 [    0.205400] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
 [    0.205400] HugeTLB: 28 KiB vmemmap can be freed for a 2.00 MiB page
 [    0.205400] ACPI: Added _OSI(Module Device)
 [    0.205400] ACPI: Added _OSI(Processor Device)
 [    0.205400] ACPI: Added _OSI(Processor Aggregator Device)
*[    0.208184] ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SBRG.EC0], AE_NOT_FOUND (20240827/dswload2-162)
 [    0.208192] ACPI Error: AE_NOT_FOUND, During name lookup/catalog (20240827/psobject-220)
 [    0.208194] ACPI: Skipping parse of AML opcode: OpcodeName unavailable (0x0010)
 [    0.208831] ACPI: 31 ACPI AML tables successfully acquired and loaded
 [    0.214895] ACPI: USB4 _OSC: OS supports USB3+ DisplayPort+ PCIe+ XDomain+
 [    0.214895] ACPI: USB4 _OSC: OS controls USB3+ DisplayPort+ PCIe+ XDomain+
 [    0.214895] ACPI: Interpreter enabled
 [    0.214895] ACPI: PM: (supports S0 S4 S5)
 [    0.214895] ACPI: Using IOAPIC for interrupt routing
 [    0.216210] PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug
 [    0.216211] PCI: Ignoring E820 reservations for host bridge windows
 [    0.216332] ACPI: Enabled 3 GPEs in block 00 to 1F
 [    0.217156] ACPI: \_SB_.PCI0.GPP0.PWRS: New power resource
 [    0.217475] ACPI: \_SB_.PCI0.GPP0.SWUS.PWRS: New power resource
 [    0.217790] ACPI: \_SB_.PCI0.GPP1.PWRS: New power resource
 [    0.218090] ACPI: \_SB_.PCI0.GPP1.SWUS.PWRS: New power resource
 [    0.218183] ACPI: \_SB_.PCI0.GPP3.P0NV: New power resource
 [    0.218382] ACPI: \_SB_.PCI0.GPP4.PWSR: New power resource
 [    0.218654] ACPI: \_SB_.PCI0.GPP5.PWSR: New power resource
 [    0.218861] ACPI: \_SB_.PCI0.GPP6.PWSR: New power resource
 [    0.219047] ACPI: \_SB_.PCI0.GPP7.P0WW: New power resource
 [    0.219237] ACPI: \_SB_.PCI0.GPPA.PWRS: New power resource
 [    0.219309] ACPI: \_SB_.PCI0.GPPA.VGA_.PWRS: New power resource
 [    0.219410] ACPI: \_SB_.PCI0.GPPA.ACP_.PWRS: New power resource
 [    0.219562] ACPI: \_SB_.PCI0.GPPA.AZAL.PWRS: New power resource
 [    0.219661] ACPI: \_SB_.PCI0.GPPA.HDAU.PWRS: New power resource
 [    0.219776] ACPI: \_SB_.PCI0.GPPA.XHC1.PWRS: New power resource
 [    0.220103] ACPI: \_SB_.PCI0.GPPC.XHC0.PWRS: New power resource
 [    0.220661] ACPI: \_SB_.PCI0.GPPC.XHC3.PWRS: New power resource
 [    0.220963] ACPI: \_SB_.PCI0.GPPC.XHC4.PWRS: New power resource
 [    0.221267] ACPI: \_SB_.PCI0.GPPC.NHI0.PWRS: New power resource
 [    0.221450] ACPI: \_SB_.PCI0.GPPC.NHI1.PWRS: New power resource
 [    0.223406] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff])
 [    0.223410] acpi PNP0A08:00: _OSC: OS supports [ExtendedConfig ASPM ClockPM Segments MSI HPX-Type3]
 [    0.223443] acpi PNP0A08:00: _OSC: OS now controls [PCIeHotplug SHPCHotplug PME AER PCIeCapability LTR]

Lines prefixed with a * are the telltale “(bug)” lines.

Log during failed suspend attempt and recovery, showing further “ACPI BIOS Error (bug)” lines

 [   94.808222] PM: suspend entry (s2idle)
 [   94.810913] Filesystems sync: 0.002 seconds
 [   94.813020] Freezing user space processes
 [   94.814113] Freezing user space processes completed (elapsed 0.001 seconds)
 [   94.814116] OOM killer disabled.
 [   94.814116] Freezing remaining freezable tasks
 [   94.815171] Freezing remaining freezable tasks completed (elapsed 0.001 seconds)
 [   94.815173] printk: Suspending console(s) (use no_console_suspend to debug)
 [   94.817869] r8169 0000:c2:00.0 enp194s0: Link is Down
*[   95.743320] ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SBRG.ECOK], AE_NOT_FOUND (20240827/psargs-332)
 [   95.743341] ACPI Error: Aborting method \_SB.PCI0.GPP7.WOFF due to previous error (AE_NOT_FOUND) (20240827/psparse-529)
 [   95.743394] ACPI Error: Aborting method \_SB.PCI0.GPP7.P0WW._OFF due to previous error (AE_NOT_FOUND) (20240827/psparse-529)
*[   95.743494] ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SBRG.EC0.GPO3], AE_NOT_FOUND (20240827/psargs-332)
 [   95.743508] ACPI Error: Aborting method \_SB.PCI0.GPP5.P_OF due to previous error (AE_NOT_FOUND) (20240827/psparse-529)
 [   95.743514] ACPI Error: Aborting method \_SB.PCI0.GPP5.PWSR._OFF due to previous error (AE_NOT_FOUND) (20240827/psparse-529)
 [   97.711243] pcieport 0000:00:02.5: Data Link Layer Link Active not set in 100 msec
 [   97.711360] iwlwifi 0000:c3:00.0: Unable to change power state from D3cold to D0, device inaccessible
 [   97.718823] pcieport 0000:00:02.3: Data Link Layer Link Active not set in 100 msec
 [   97.718885] r8169 0000:c2:00.0: Unable to change power state from D3cold to D0, device inaccessible
 [   97.780222] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
 [   97.785309] [drm] PCIE GART of 512M enabled (table at 0x00000080FFB00000).
 [   97.785434] amdgpu 0000:c4:00.0: amdgpu: SMU is resuming...
 [   97.790592] amdgpu 0000:c4:00.0: amdgpu: SMU is resumed successfully!

Lines prefixed with a * are the telltale “(bug)” lines.

Beelink CS-June

TimH

Hello there,

I have sent the corresponding BIOS file for you, please check your PM.

Have a nice day!

AndrewC

Hello there,

Sorry for your waiting.

The BIOS version we currently use for ACPI errors is not applicable to your machine for the time being.

Our R&D team is urgently working on the BIOS file for resolving the ACPI error in your BIOS version.

We will send it to you after the corresponding BIOS file is generated.

Have a nice day!

Beelink CS-June

AndrewC

Hello there,

I have sent the corresponding BIOS file for you，please check your PM.

We will wait for your feedback after testing the BIOS.

Have a ncie day!

AndrewC

Beelink CS-June
Hi there. I’ve applied the new BIOS you sent me via PM on September 27, 2025 8:15 AM, SER9T204_a1.rom. Setup now shows 2025-09-12 not 2025-02-21. The tutorial .docx's formatting is badly garbled in LibreOffice Writer, but I was able to extract the text from it, quoted below. The procedure is incomplete, but I think I’ve improvised successfully. See below for how I followed it.

The telltale ACPI BIOS Error (bug) lines are now gone. However, I still see the failed suspending and no response to the power button. systemctl suspend results in a failed suspend operation, full speed fan, and broken networking after the system recovers itself. Kernel still does not detect the power button at all. I will attempt to follow up with dmesg output as before shortly (I’m a little bit pressed for time right now, with family duties)

Instructions as followed

Prepare a U[SB] disk ~~(USB driver)~~ with a storage capacity of at least 16 GB
~~Right click and select~~ format… Format U[SB] disk to FAT32 format,and change the Volume label to WINPE ~~,click start to finish formatting~~
- 1 & 2 done from KDE Partition Manager, procedure is obviously different for us Linux users where marked.
- You could use good old fdisk instead.
- fat32 is required, 4G USB disks are fine too, I set the bootable flag and used MBR not GPT partition tables.
- File system label should be uppercase.
Copy the BIOS file to U[SB] disk, and it must be in the root directory of U[SB] disk.
- The easy bit :) This means all files from the supplied zipfile, however.
- EFI/, SER9*******.rom, and flash.nsh should be visible at the root of the USB drive.
Restart the computer, press F7 repeatedly on the boot logo interface, and select USB boot in the boot options
- Done. It dumps me into the EFI shell.
~~Start flashing~~, after the flashing is complete, the screen will turn black for a while and then PC will restart automatically.
- After a bit of experimentation, I see that the instruction to “start flashing” is incomplete. It means
  1. identify the file system matching the USB drive (in my case it’s fs1)
  2. Type fs1: to select that drive, and hit Return, prompt will change to fs1:\> (for me, your drive may vary)
  3. Type flash and press Return. Procedure begins.
- After restart, system enters the “Recovery” tab of Setup.
- From here, select “> Proceed with flash update”, and press return
- Might need to press Escape as well. Eventually a Flash Update progress bar is shown. Let it finish and reboot.

I can post screenshots as necessary if anyone’s lost with the BIOS flashing.

AndrewC

Beelink CS-June As promised, dmesg output from 0 to fully booted, and after invoking systemctl suspend. This is with SER9T204_a1.rom as sent to me earlier today (thanks for that). Like I say, it makes the error message go away, but the functionality I want is still broken.

All kernel messages during boot (1 of 2) due to board limitations

[    0.000000] Linux version 6.12.43+deb13-amd64 (debian-kernel@lists.debian.org) (x86_64-linux-gnu-gcc-14 (Debian 14.2.0-19) 14.2.0, GNU ld (GNU Binutils for Debian) 2.44) #1 SMP PREEMPT_DYNAMIC Debian 6.12.43-1 (2025-08-27)
[    0.000000] Command line: BOOT_IMAGE=/vmlinuz-6.12.43+deb13-amd64 root=/dev/mapper/fogbow--vg-root ro quiet
[    0.000000] x86/split lock detection: #DB: warning on user-space bus_locks
[    0.000000] BIOS-provided physical RAM map:
[    0.000000] BIOS-e820: [mem 0x0000000000000000-0x000000000009ffff] usable
[    0.000000] BIOS-e820: [mem 0x00000000000a0000-0x00000000000fffff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000000100000-0x0000000009a7efff] usable
[    0.000000] BIOS-e820: [mem 0x0000000009a7f000-0x0000000009ffffff] reserved
[    0.000000] BIOS-e820: [mem 0x000000000a000000-0x000000000a1fffff] usable
[    0.000000] BIOS-e820: [mem 0x000000000a200000-0x000000000a237fff] ACPI NVS
[    0.000000] BIOS-e820: [mem 0x000000000a238000-0x000000006817efff] usable
[    0.000000] BIOS-e820: [mem 0x000000006817f000-0x000000006e17efff] reserved
[    0.000000] BIOS-e820: [mem 0x000000006e17f000-0x000000006e27efff] ACPI data
[    0.000000] BIOS-e820: [mem 0x000000006e27f000-0x000000007027efff] ACPI NVS
[    0.000000] BIOS-e820: [mem 0x000000007027f000-0x00000000783fefff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000783ff000-0x0000000079ff6fff] usable
[    0.000000] BIOS-e820: [mem 0x0000000079ff7000-0x0000000079ffcfff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000079ffd000-0x0000000079ffefff] usable
[    0.000000] BIOS-e820: [mem 0x0000000079fff000-0x000000007bffffff] reserved
[    0.000000] BIOS-e820: [mem 0x000000007d675000-0x000000007d6fffff] reserved
[    0.000000] BIOS-e820: [mem 0x000000007d800000-0x000000007fffffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000e0000000-0x00000000efffffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fd000000-0x00000000ffffffff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000100000000-0x000000077e17ffff] usable
[    0.000000] BIOS-e820: [mem 0x000000077f1c0000-0x00000008a01fffff] reserved
[    0.000000] NX (Execute Disable) protection: active
[    0.000000] APIC: Static calls initialized
[    0.000000] e820: update [mem 0x5ac79018-0x5ac7d457] usable ==> usable
[    0.000000] extended physical RAM map:
[    0.000000] reserve setup_data: [mem 0x0000000000000000-0x000000000009ffff] usable
[    0.000000] reserve setup_data: [mem 0x00000000000a0000-0x00000000000fffff] reserved
[    0.000000] reserve setup_data: [mem 0x0000000000100000-0x0000000009a7efff] usable
[    0.000000] reserve setup_data: [mem 0x0000000009a7f000-0x0000000009ffffff] reserved
[    0.000000] reserve setup_data: [mem 0x000000000a000000-0x000000000a1fffff] usable
[    0.000000] reserve setup_data: [mem 0x000000000a200000-0x000000000a237fff] ACPI NVS
[    0.000000] reserve setup_data: [mem 0x000000000a238000-0x000000005ac79017] usable
[    0.000000] reserve setup_data: [mem 0x000000005ac79018-0x000000005ac7d457] usable
[    0.000000] reserve setup_data: [mem 0x000000005ac7d458-0x000000006817efff] usable
[    0.000000] reserve setup_data: [mem 0x000000006817f000-0x000000006e17efff] reserved
[    0.000000] reserve setup_data: [mem 0x000000006e17f000-0x000000006e27efff] ACPI data
[    0.000000] reserve setup_data: [mem 0x000000006e27f000-0x000000007027efff] ACPI NVS
[    0.000000] reserve setup_data: [mem 0x000000007027f000-0x00000000783fefff] reserved
[    0.000000] reserve setup_data: [mem 0x00000000783ff000-0x0000000079ff6fff] usable
[    0.000000] reserve setup_data: [mem 0x0000000079ff7000-0x0000000079ffcfff] reserved
[    0.000000] reserve setup_data: [mem 0x0000000079ffd000-0x0000000079ffefff] usable
[    0.000000] reserve setup_data: [mem 0x0000000079fff000-0x000000007bffffff] reserved
[    0.000000] reserve setup_data: [mem 0x000000007d675000-0x000000007d6fffff] reserved
[    0.000000] reserve setup_data: [mem 0x000000007d800000-0x000000007fffffff] reserved
[    0.000000] reserve setup_data: [mem 0x00000000e0000000-0x00000000efffffff] reserved
[    0.000000] reserve setup_data: [mem 0x00000000fd000000-0x00000000ffffffff] reserved
[    0.000000] reserve setup_data: [mem 0x0000000100000000-0x000000077e17ffff] usable
[    0.000000] reserve setup_data: [mem 0x000000077f1c0000-0x00000008a01fffff] reserved
[    0.000000] efi: EFI v2.9 by American Megatrends
[    0.000000] efi: ACPI=0x6e27e000 ACPI 2.0=0x6e27e014 TPMFinalLog=0x70232000 SMBIOS=0x78053000 SMBIOS 3.0=0x78052000 MEMATTR=0x6315b698 MOKvar=0x780ce000 INITRD=0x5b1a6018 RNG=0x6e219018 TPMEventLog=0x6e20e018
[    0.000000] random: crng init done
[    0.000000] efi: Remove mem66: MMIO range=[0xe0000000-0xefffffff] (256MB) from e820 map
[    0.000000] e820: remove [mem 0xe0000000-0xefffffff] reserved
[    0.000000] efi: Remove mem67: MMIO range=[0xfd000000-0xfedfffff] (30MB) from e820 map
[    0.000000] e820: remove [mem 0xfd000000-0xfedfffff] reserved
[    0.000000] efi: Not removing mem68: MMIO range=[0xfee00000-0xfee00fff] (4KB) from e820 map
[    0.000000] efi: Remove mem69: MMIO range=[0xfee01000-0xffffffff] (17MB) from e820 map
[    0.000000] e820: remove [mem 0xfee01000-0xffffffff] reserved
[    0.000000] efi: Remove mem71: MMIO range=[0x880000000-0x8a01fffff] (514MB) from e820 map
[    0.000000] e820: remove [mem 0x880000000-0x8a01fffff] reserved
[    0.000000] secureboot: Secure boot disabled
[    0.000000] SMBIOS 3.7.0 present.
[    0.000000] DMI: AZW SER9/SER9, BIOS SER9T204 09/12/2025
[    0.000000] DMI: Memory slots populated: 4/4
[    0.000000] tsc: Fast TSC calibration using PIT
[    0.000000] tsc: Detected 1996.204 MHz processor
[    0.000062] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved
[    0.000063] e820: remove [mem 0x000a0000-0x000fffff] usable
[    0.000068] last_pfn = 0x77e180 max_arch_pfn = 0x400000000
[    0.000073] MTRR map: 6 entries (3 fixed + 3 variable; max 20), built from 9 variable MTRRs
[    0.000074] x86/PAT: Configuration [0-7]: WB  WC  UC- UC  WB  WP  UC- WT

[    0.000205] last_pfn = 0x79fff max_arch_pfn = 0x400000000
[    0.003412] Using GB pages for direct mapping
[    0.003664] RAMDISK: [mem 0x4fabc000-0x52009fff]
[    0.003873] ACPI: Early table checksum verification disabled
[    0.003876] ACPI: RSDP 0x000000006E27E014 000024 (v02 ALASKA)
[    0.003880] ACPI: XSDT 0x000000006E27D728 000184 (v01 ALASKA A M I    01072009 AMI  01000013)
[    0.003885] ACPI: FACP 0x000000006E271000 000114 (v06 ALASKA A M I    01072009 AMI  00010013)
[    0.003888] ACPI: DSDT 0x000000006E268000 008228 (v02 ALASKA A M I    01072009 INTL 20230331)
[    0.003890] ACPI: FACS 0x000000006FA17000 000040
[    0.003891] ACPI: MSDM 0x000000006E27C000 000055 (v03 ALASKA A M I    01072009 AMI  01000013)
[    0.003893] ACPI: SSDT 0x000000006E273000 0083FE (v02 AMD    AmdTable 00000002 MSFT 04000000)
[    0.003894] ACPI: SSDT 0x000000006E272000 000309 (v02 ALASKA CPUSSDT  01072009 AMI  01072009)
[    0.003896] ACPI: FIDT 0x000000006E267000 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
[    0.003897] ACPI: MCFG 0x000000006E266000 00003C (v01 ALASKA A M I    01072009 MSFT 00010013)
[    0.003898] ACPI: HPET 0x000000006E265000 000038 (v01 ALASKA A M I    01072009 AMI  00000005)
[    0.003899] ACPI: UEFI 0x000000006FA15000 000048 (v01 ALASKA A M I    01072009 AMI  01000013)
[    0.003900] ACPI: FPDT 0x000000006E264000 000044 (v01 ALASKA A M I    01072009 AMI  01000013)
[    0.003902] ACPI: ABLT 0x000000006E263000 0002C2 (v00                 00000000      00000000)
[    0.003903] ACPI: VFCT 0x000000006E25E000 004484 (v01 ALASKA A M I    00000001 AMD  33504F47)
[    0.003904] ACPI: BGRT 0x000000006E25D000 000038 (v01 ALASKA A M I    01072009 AMI  00010013)
[    0.003905] ACPI: SSDT 0x000000006E255000 007EA6 (v02 AMD    AMD CPU  00000001 AMD  00000001)
[    0.003907] ACPI: TPM2 0x000000006E254000 000050 (v05 ALASKA A M I    00000001 AMI  00000000)
[    0.003908] ACPI: SSDT 0x000000006E252000 00169E (v02 AMD    CPMDFIG2 00000001 INTL 20230331)
[    0.003909] ACPI: SSDT 0x000000006E24F000 002AA6 (v02 AMD    CDFAAIG2 00000001 INTL 20230331)
[    0.003910] ACPI: SSDT 0x000000006E24E000 000E8B (v02 AMD    OEMACP   00000001 INTL 20230331)
[    0.003912] ACPI: SSDT 0x000000006E244000 009A53 (v02 AMD    CPMCMN   00000001 INTL 20230331)
[    0.003913] ACPI: WSMT 0x000000006E243000 000028 (v01 ALASKA A M I    01072009 AMI  00010013)
[    0.003914] ACPI: APIC 0x000000006E242000 000128 (v06 ALASKA A M I    01072009 AMI  00010013)
[    0.003915] ACPI: SSDT 0x000000006E241000 00010D (v02 MSFT   MHSP     00000004 INTL 20230331)
[    0.003916] ACPI: SSDT 0x000000006E23F000 001B84 (v02 AMD    AOD      00000001 INTL 20230331)
[    0.003918] ACPI: SSDT 0x000000006E23E000 000051 (v02 AMD    DRTM     00000001 INTL 20230331)
[    0.003919] ACPI: IVRS 0x000000006E23D000 0001F0 (v02 AMD    AmdTable 00000001 AMD  00000001)
[    0.003920] ACPI: SSDT 0x000000006E23C000 00096A (v02 AMD    CPMMSOSC 00000001 INTL 20230331)
[    0.003921] ACPI: SSDT 0x000000006E23B000 000F5C (v02 AMD    CPMACPV8 00000001 INTL 20230331)
[    0.003922] ACPI: SSDT 0x000000006E23A000 000500 (v02 AMD    MEMTOOL0 00000002 INTL 20230331)
[    0.003924] ACPI: SSDT 0x000000006E239000 000610 (v02 AMD    TOUCHPNL 00000001 INTL 20230331)
[    0.003925] ACPI: SSDT 0x000000006E238000 000611 (v02 AMD    TOUCHPAD 00000001 INTL 20230331)
[    0.003926] ACPI: SSDT 0x000000006E237000 0007D5 (v02 AMD    THERMAL0 00000001 INTL 20230331)
[    0.003927] ACPI: SSDT 0x000000006E235000 00101C (v02 AMD    GPP_PME_ 00000001 INTL 20230331)
[    0.003928] ACPI: SSDT 0x000000006E22B000 00972B (v02 AMD    INTGPPC_ 00000001 INTL 20230331)
[    0.003929] ACPI: SSDT 0x000000006E226000 004608 (v02 AMD    INTGPPA_ 00000001 INTL 20230331)
[    0.003930] ACPI: SSDT 0x000000006E225000 000CCB (v02 AMD    CPMGPIO0 00000001 INTL 20230331)
[    0.003932] ACPI: SSDT 0x000000006E224000 00008D (v02 AMD    CPMMSLPI 00000001 INTL 20230331)
[    0.003933] ACPI: SSDT 0x000000006E223000 000509 (v02 AMD    CPMSFAML 00000001 INTL 20230331)
[    0.003934] ACPI: SSDT 0x000000006E222000 000788 (v02 AMD    WwanSsdt 00000001 INTL 20230331)
[    0.003935] ACPI: SSDT 0x000000006E221000 00079D (v02 AMD    SDCR     00000001 INTL 20230331)
[    0.003936] ACPI: SSDT 0x000000006E220000 00071E (v02 AMD    LOM      00000001 INTL 20230331)
[    0.003937] ACPI: SSDT 0x000000006E21F000 000964 (v02 AMD    WLAN     00000001 INTL 20230331)
[    0.003938] ACPI: SSDT 0x000000006E21E000 000C93 (v02 AMD    NVME     00000001 INTL 20230331)
[    0.003940] ACPI: SSDT 0x000000006E21D000 000AB6 (v02 AMD    GpMsSsdt 00000001 INTL 20230331)
[    0.003941] ACPI: SSDT 0x000000006E21C000 000057 (v02 AMD    GPP9     00000001 INTL 20230331)
[    0.003942] ACPI: SSDT 0x000000006E21A000 00176C (v02 AMD    UPEP     00000001 INTL 20230331)
[    0.003943] ACPI: Reserving FACP table memory at [mem 0x6e271000-0x6e271113]
[    0.003944] ACPI: Reserving DSDT table memory at [mem 0x6e268000-0x6e270227]
[    0.003944] ACPI: Reserving FACS table memory at [mem 0x6fa17000-0x6fa1703f]
[    0.003944] ACPI: Reserving MSDM table memory at [mem 0x6e27c000-0x6e27c054]
[    0.003944] ACPI: Reserving SSDT table memory at [mem 0x6e273000-0x6e27b3fd]
[    0.003945] ACPI: Reserving SSDT table memory at [mem 0x6e272000-0x6e272308]
[    0.003945] ACPI: Reserving FIDT table memory at [mem 0x6e267000-0x6e26709b]
[    0.003945] ACPI: Reserving MCFG table memory at [mem 0x6e266000-0x6e26603b]
[    0.003945] ACPI: Reserving HPET table memory at [mem 0x6e265000-0x6e265037]
[    0.003946] ACPI: Reserving UEFI table memory at [mem 0x6fa15000-0x6fa15047]
[    0.003946] ACPI: Reserving FPDT table memory at [mem 0x6e264000-0x6e264043]
[    0.003946] ACPI: Reserving ABLT table memory at [mem 0x6e263000-0x6e2632c1]
[    0.003946] ACPI: Reserving VFCT table memory at [mem 0x6e25e000-0x6e262483]
[    0.003947] ACPI: Reserving BGRT table memory at [mem 0x6e25d000-0x6e25d037]
[    0.003947] ACPI: Reserving SSDT table memory at [mem 0x6e255000-0x6e25cea5]
[    0.003947] ACPI: Reserving TPM2 table memory at [mem 0x6e254000-0x6e25404f]
[    0.003947] ACPI: Reserving SSDT table memory at [mem 0x6e252000-0x6e25369d]
[    0.003947] ACPI: Reserving SSDT table memory at [mem 0x6e24f000-0x6e251aa5]
[    0.003948] ACPI: Reserving SSDT table memory at [mem 0x6e24e000-0x6e24ee8a]
[    0.003948] ACPI: Reserving SSDT table memory at [mem 0x6e244000-0x6e24da52]
[    0.003948] ACPI: Reserving WSMT table memory at [mem 0x6e243000-0x6e243027]
[    0.003948] ACPI: Reserving APIC table memory at [mem 0x6e242000-0x6e242127]
[    0.003949] ACPI: Reserving SSDT table memory at [mem 0x6e241000-0x6e24110c]
[    0.003949] ACPI: Reserving SSDT table memory at [mem 0x6e23f000-0x6e240b83]
[    0.003949] ACPI: Reserving SSDT table memory at [mem 0x6e23e000-0x6e23e050]
[    0.003949] ACPI: Reserving IVRS table memory at [mem 0x6e23d000-0x6e23d1ef]
[    0.003950] ACPI: Reserving SSDT table memory at [mem 0x6e23c000-0x6e23c969]
[    0.003950] ACPI: Reserving SSDT table memory at [mem 0x6e23b000-0x6e23bf5b]
[    0.003950] ACPI: Reserving SSDT table memory at [mem 0x6e23a000-0x6e23a4ff]
[    0.003950] ACPI: Reserving SSDT table memory at [mem 0x6e239000-0x6e23960f]
[    0.003951] ACPI: Reserving SSDT table memory at [mem 0x6e238000-0x6e238610]
[    0.003951] ACPI: Reserving SSDT table memory at [mem 0x6e237000-0x6e2377d4]
[    0.003951] ACPI: Reserving SSDT table memory at [mem 0x6e235000-0x6e23601b]
[    0.003951] ACPI: Reserving SSDT table memory at [mem 0x6e22b000-0x6e23472a]
[    0.003952] ACPI: Reserving SSDT table memory at [mem 0x6e226000-0x6e22a607]
[    0.003952] ACPI: Reserving SSDT table memory at [mem 0x6e225000-0x6e225cca]
[    0.003952] ACPI: Reserving SSDT table memory at [mem 0x6e224000-0x6e22408c]
[    0.003952] ACPI: Reserving SSDT table memory at [mem 0x6e223000-0x6e223508]
[    0.003953] ACPI: Reserving SSDT table memory at [mem 0x6e222000-0x6e222787]
[    0.003953] ACPI: Reserving SSDT table memory at [mem 0x6e221000-0x6e22179c]
[    0.003953] ACPI: Reserving SSDT table memory at [mem 0x6e220000-0x6e22071d]
[    0.003953] ACPI: Reserving SSDT table memory at [mem 0x6e21f000-0x6e21f963]
[    0.003953] ACPI: Reserving SSDT table memory at [mem 0x6e21e000-0x6e21ec92]
[    0.003954] ACPI: Reserving SSDT table memory at [mem 0x6e21d000-0x6e21dab5]
[    0.003954] ACPI: Reserving SSDT table memory at [mem 0x6e21c000-0x6e21c056]
[    0.003954] ACPI: Reserving SSDT table memory at [mem 0x6e21a000-0x6e21b76b]
[    0.004006] No NUMA configuration found
[    0.004006] Faking a node at [mem 0x0000000000000000-0x000000077e17ffff]
[    0.004012] NODE_DATA(0) allocated [mem 0x77e155680-0x77e17ffff]
[    0.004114] Zone ranges:
[    0.004115]   DMA      [mem 0x0000000000001000-0x0000000000ffffff]
[    0.004115]   DMA32    [mem 0x0000000001000000-0x00000000ffffffff]
[    0.004116]   Normal   [mem 0x0000000100000000-0x000000077e17ffff]
[    0.004117]   Device   empty
[    0.004117] Movable zone start for each node
[    0.004118] Early memory node ranges
[    0.004118]   node   0: [mem 0x0000000000001000-0x000000000009ffff]
[    0.004119]   node   0: [mem 0x0000000000100000-0x0000000009a7efff]
[    0.004119]   node   0: [mem 0x000000000a000000-0x000000000a1fffff]
[    0.004120]   node   0: [mem 0x000000000a238000-0x000000006817efff]
[    0.004120]   node   0: [mem 0x00000000783ff000-0x0000000079ff6fff]
[    0.004120]   node   0: [mem 0x0000000079ffd000-0x0000000079ffefff]
[    0.004121]   node   0: [mem 0x0000000100000000-0x000000077e17ffff]
[    0.004122] Initmem setup node 0 [mem 0x0000000000001000-0x000000077e17ffff]
[    0.004127] On node 0, zone DMA: 1 pages in unavailable ranges
[    0.004134] On node 0, zone DMA: 96 pages in unavailable ranges
[    0.004186] On node 0, zone DMA32: 1409 pages in unavailable ranges
[    0.004830] On node 0, zone DMA32: 56 pages in unavailable ranges
[    0.004938] On node 0, zone DMA32: 33408 pages in unavailable ranges
[    0.004939] On node 0, zone DMA32: 6 pages in unavailable ranges
[    0.005087] On node 0, zone Normal: 24577 pages in unavailable ranges
[    0.005112] On node 0, zone Normal: 7808 pages in unavailable ranges
[    0.005389] ACPI: PM-Timer IO Port: 0x808
[    0.005397] ACPI: LAPIC_NMI (acpi_id[0xff] high edge lint[0x1])
[    0.005410] IOAPIC[0]: apic_id 33, version 33, address 0xfec00000, GSI 0-23
[    0.005414] IOAPIC[1]: apic_id 34, version 33, address 0xfec01000, GSI 24-55
[    0.005415] ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl)
[    0.005417] ACPI: INT_SRC_OVR (bus 0 bus_irq 1 global_irq 1 low edge)
[    0.005417] ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 low level)
[    0.005420] ACPI: Using ACPI (MADT) for SMP configuration information
[    0.005421] ACPI: HPET id: 0x10228201 base: 0xfed00000
[    0.005429] e820: update [mem 0x62f00000-0x6307bfff] usable ==> reserved
[    0.005440] CPU topo: Max. logical packages:   1
[    0.005441] CPU topo: Max. logical dies:       1
[    0.005441] CPU topo: Max. dies per package:   1
[    0.005443] CPU topo: Max. threads per core:   2
[    0.005444] CPU topo: Num. cores per package:    12
[    0.005444] CPU topo: Num. threads per package:  24
[    0.005444] CPU topo: Allowing 24 present CPUs plus 0 hotplug CPUs
[    0.005457] PM: hibernation: Registered nosave memory: [mem 0x00000000-0x00000fff]
[    0.005458] PM: hibernation: Registered nosave memory: [mem 0x000a0000-0x000fffff]
[    0.005458] PM: hibernation: Registered nosave memory: [mem 0x09a7f000-0x09ffffff]
[    0.005459] PM: hibernation: Registered nosave memory: [mem 0x0a200000-0x0a237fff]
[    0.005459] PM: hibernation: Registered nosave memory: [mem 0x62f00000-0x6307bfff]
[    0.005460] PM: hibernation: Registered nosave memory: [mem 0x6817f000-0x783fefff]
[    0.005461] PM: hibernation: Registered nosave memory: [mem 0x79ff7000-0x79ffcfff]
[    0.005461] PM: hibernation: Registered nosave memory: [mem 0x79fff000-0xffffffff]
[    0.005462] [mem 0x80000000-0xfedfffff] available for PCI devices
[    0.005463] Booting paravirtualized kernel on bare hardware
[    0.005465] clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645519600211568 ns
[    0.008268] setup_percpu: NR_CPUS:8192 nr_cpumask_bits:24 nr_cpu_ids:24 nr_node_ids:1
[    0.008740] percpu: Embedded 66 pages/cpu s233472 r8192 d28672 u524288
[    0.008746] pcpu-alloc: s233472 r8192 d28672 u524288 alloc=1*2097152
[    0.008747] pcpu-alloc: [0] 00 01 02 03 [0] 04 05 06 07
[    0.008749] pcpu-alloc: [0] 08 09 10 11 [0] 12 13 14 15
[    0.008750] pcpu-alloc: [0] 16 17 18 19 [0] 20 21 22 23
[    0.008761] Kernel command line: BOOT_IMAGE=/vmlinuz-6.12.43+deb13-amd64 root=/dev/mapper/fogbow--vg-root ro quiet
[    0.008789] Unknown kernel command line parameters "BOOT_IMAGE=/vmlinuz-6.12.43+deb13-amd64", will be passed to user space.
[    0.008801] printk: log_buf_len individual max cpu contribution: 4096 bytes
[    0.008802] printk: log_buf_len total cpu_extra contributions: 94208 bytes
[    0.008802] printk: log_buf_len min size: 131072 bytes
[    0.008869] printk: log_buf_len: 262144 bytes
[    0.008870] printk: early log buf free: 113200(86%)
[    0.009812] Dentry cache hash table entries: 4194304 (order: 13, 33554432 bytes, linear)
[    0.010280] Inode-cache hash table entries: 2097152 (order: 12, 16777216 bytes, linear)
[    0.010373] Fallback order for Node 0: 0
[    0.010377] Built 1 zonelists, mobility grouping on.  Total pages: 7239903
[    0.010378] Policy zone: Normal
[    0.010386] mem auto-init: stack:all(zero), heap alloc:on, heap free:off
[    0.010425] software IO TLB: area num 32.
[    0.017392] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=24, Nodes=1
[    0.017427] ftrace: allocating 45722 entries in 179 pages
[    0.025076] ftrace: allocated 179 pages with 5 groups
[    0.025607] Dynamic Preempt: voluntary
[    0.025664] rcu: Preemptible hierarchical RCU implementation.
[    0.025665] rcu: 	RCU restricting CPUs from NR_CPUS=8192 to nr_cpu_ids=24.
[    0.025666] 	Trampoline variant of Tasks RCU enabled.
[    0.025666] 	Rude variant of Tasks RCU enabled.
[    0.025666] 	Tracing variant of Tasks RCU enabled.
[    0.025667] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.025667] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=24
[    0.025676] RCU Tasks: Setting shift to 5 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=24.
[    0.025678] RCU Tasks Rude: Setting shift to 5 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=24.
[    0.025679] RCU Tasks Trace: Setting shift to 5 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=24.
[    0.027742] NR_IRQS: 524544, nr_irqs: 1160, preallocated irqs: 16
[    0.027926] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[    0.027989] Console: colour dummy device 80x25
[    0.027991] printk: legacy console [tty0] enabled
[    0.028018] ACPI: Core revision 20240827
[    0.028175] clocksource: hpet: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 133484873504 ns
[    0.028192] APIC: Switch to symmetric I/O mode setup
[    0.028641] AMD-Vi: ivrs, add hid:AMDI0020, uid:\_SB.FUR0, rdevid:160
[    0.028642] AMD-Vi: ivrs, add hid:AMDI0020, uid:\_SB.FUR1, rdevid:160
[    0.028644] AMD-Vi: ivrs, add hid:AMDI0020, uid:\_SB.FUR2, rdevid:160
[    0.028644] AMD-Vi: ivrs, add hid:AMDI0020, uid:\_SB.FUR3, rdevid:160
[    0.028645] AMD-Vi: ivrs, add hid:MSFT0201, uid:1, rdevid:96
[    0.028645] AMD-Vi: Using global IVHD EFR:0x246577efa2254afa, EFR2:0x10
[    0.029760] ..TIMER: vector=0x30 apic1=0 pin1=2 apic2=-1 pin2=-1
[    0.048199] clocksource: tsc-early: mask: 0xffffffffffffffff max_cycles: 0x398c58f3ad9, max_idle_ns: 881590744025 ns
[    0.048202] Calibrating delay loop (skipped), value calculated using timer frequency.. 3992.40 BogoMIPS (lpj=7984816)
[    0.048225] x86/cpu: User Mode Instruction Prevention (UMIP) activated
[    0.048294] LVT offset 1 assigned for vector 0xf9
[    0.048564] LVT offset 2 assigned for vector 0xf4
[    0.048630] Last level iTLB entries: 4KB 64, 2MB 64, 4MB 32
[    0.048631] Last level dTLB entries: 4KB 128, 2MB 128, 4MB 64, 1GB 0
[    0.048633] process: using mwait in idle threads
[    0.048635] Spectre V1 : Mitigation: usercopy/swapgs barriers and __user pointer sanitization
[    0.048637] Spectre V2 : Mitigation: Enhanced / Automatic IBRS
[    0.048639] Spectre V2 : mitigation: Enabling conditional Indirect Branch Prediction Barrier
[    0.048640] Spectre V2 : User space: Mitigation: STIBP always-on protection
[    0.048640] Speculative Store Bypass: Mitigation: Speculative Store Bypass disabled via prctl
[    0.048650] x86/fpu: Supporting XSAVE feature 0x001: 'x87 floating point registers'
[    0.048651] x86/fpu: Supporting XSAVE feature 0x002: 'SSE registers'
[    0.048651] x86/fpu: Supporting XSAVE feature 0x004: 'AVX registers'
[    0.048652] x86/fpu: Supporting XSAVE feature 0x020: 'AVX-512 opmask'
[    0.048653] x86/fpu: Supporting XSAVE feature 0x040: 'AVX-512 Hi256'
[    0.048653] x86/fpu: Supporting XSAVE feature 0x080: 'AVX-512 ZMM_Hi256'
[    0.048653] x86/fpu: Supporting XSAVE feature 0x200: 'Protection Keys User registers'
[    0.048654] x86/fpu: Supporting XSAVE feature 0x800: 'Control-flow User registers'
[    0.048655] x86/fpu: xstate_offset[2]:  576, xstate_sizes[2]:  256
[    0.048656] x86/fpu: xstate_offset[5]:  832, xstate_sizes[5]:   64
[    0.048656] x86/fpu: xstate_offset[6]:  896, xstate_sizes[6]:  512
[    0.048657] x86/fpu: xstate_offset[7]: 1408, xstate_sizes[7]: 1024
[    0.048657] x86/fpu: xstate_offset[9]: 2432, xstate_sizes[9]:    8
[    0.048658] x86/fpu: xstate_offset[11]: 2440, xstate_sizes[11]:   16
[    0.048659] x86/fpu: Enabled xstate features 0xae7, context size is 2456 bytes, using 'compacted' format.
[    0.063684] Freeing SMP alternatives memory: 40K
[    0.063686] pid_max: default: 32768 minimum: 301
[    0.065397] LSM: initializing lsm=lockdown,capability,landlock,yama,apparmor,tomoyo,bpf,ipe,ima,evm
[    0.065452] landlock: Up and running.
[    0.065453] Yama: disabled by default; enable with sysctl kernel.yama.*
[    0.065513] AppArmor: AppArmor initialized
[    0.065528] TOMOYO Linux initialized
[    0.065662] LSM support for eBPF active
[    0.065717] Mount-cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    0.065740] Mountpoint-cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    0.174131] smpboot: CPU0: AMD Ryzen AI 9 HX 370 w/ Radeon 890M (family: 0x1a, model: 0x24, stepping: 0x0)
[    0.174343] Performance Events: Fam17h+ 16-deep LBR, core perfctr, AMD PMU driver.
[    0.174370] ... version:                2
[    0.174371] ... bit width:              48
[    0.174371] ... generic registers:      6
[    0.174371] ... value mask:             0000ffffffffffff
[    0.174372] ... max period:             00007fffffffffff
[    0.174372] ... fixed-purpose events:   0
[    0.174372] ... event mask:             000000000000003f
[    0.174457] signal: max sigframe size: 3376
[    0.174489] rcu: Hierarchical SRCU implementation.
[    0.174490] rcu: 	Max phase no-delay instances is 1000.
[    0.174525] Timer migration: 2 hierarchy levels; 8 children per group; 2 crossnode level
[    0.174738] NMI watchdog: Enabled. Permanently consumes one hw-PMU counter.
[    0.174969] smp: Bringing up secondary CPUs ...
[    0.175054] smpboot: x86: Booting SMP configuration:
[    0.175054] .... node  #0, CPUs:        #1  #2  #3  #4  #5  #6  #7  #8  #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 #21 #22 #23
[    0.177536] Spectre V2 : Update user space SMT mitigation: STIBP always-on
[    0.180304] smp: Brought up 1 node, 24 CPUs
[    0.180304] smpboot: Total of 24 processors activated (95817.79 BogoMIPS)
[    0.202311] node 0 deferred pages initialised in 16ms
[    0.202311] Memory: 28274452K/28959612K available (16384K kernel code, 2486K rwdata, 11788K rodata, 4144K init, 4956K bss, 665568K reserved, 0K cma-reserved)
[    0.202485] devtmpfs: initialized
[    0.202485] x86/mm: Memory block size: 128MB
[    0.204211] ACPI: PM: Registering ACPI NVS region [mem 0x0a200000-0x0a237fff] (229376 bytes)
[    0.204213] ACPI: PM: Registering ACPI NVS region [mem 0x6e27f000-0x7027efff] (33554432 bytes)
[    0.204386] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.204404] futex hash table entries: 8192 (order: 7, 524288 bytes, linear)
[    0.204479] pinctrl core: initialized pinctrl subsystem
[    0.204825] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.204977] DMA: preallocated 4096 KiB GFP_KERNEL pool for atomic allocations
[    0.205081] DMA: preallocated 4096 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    0.205185] DMA: preallocated 4096 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[    0.205189] audit: initializing netlink subsys (disabled)
[    0.205192] audit: type=2000 audit(1758997809.000:1): state=initialized audit_enabled=0 res=1
[    0.205192] thermal_sys: Registered thermal governor 'fair_share'
[    0.205192] thermal_sys: Registered thermal governor 'bang_bang'
[    0.205192] thermal_sys: Registered thermal governor 'step_wise'
[    0.205192] thermal_sys: Registered thermal governor 'user_space'
[    0.205192] thermal_sys: Registered thermal governor 'power_allocator'
[    0.205192] cpuidle: using governor ladder
[    0.205192] cpuidle: using governor menu
[    0.205192] acpiphp: ACPI Hot Plug PCI Controller Driver version: 0.5
[    0.205192] PCI: ECAM [mem 0xe0000000-0xefffffff] (base 0xe0000000) for domain 0000 [bus 00-ff]
[    0.205192] PCI: Using configuration type 1 for base access
[    0.205192] kprobes: kprobe jump-optimization is enabled. All kprobes are optimized if possible.
[    0.205192] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[    0.205192] HugeTLB: 16380 KiB vmemmap can be freed for a 1.00 GiB page
[    0.205192] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[    0.205192] HugeTLB: 28 KiB vmemmap can be freed for a 2.00 MiB page
[    0.205192] ACPI: Added _OSI(Module Device)
[    0.205192] ACPI: Added _OSI(Processor Device)
[    0.205192] ACPI: Added _OSI(Processor Aggregator Device)
[    0.207950] ACPI: 31 ACPI AML tables successfully acquired and loaded
[    0.212324] ACPI: USB4 _OSC: OS supports USB3+ DisplayPort+ PCIe+ XDomain+
[    0.212326] ACPI: USB4 _OSC: OS controls USB3+ DisplayPort+ PCIe+ XDomain+
[    0.212603] ACPI: Interpreter enabled
[    0.212610] ACPI: PM: (supports S0 S3 S4 S5)
[    0.212611] ACPI: Using IOAPIC for interrupt routing
[    0.212717] PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug
[    0.212717] PCI: Ignoring E820 reservations for host bridge windows
[    0.212840] ACPI: Enabled 3 GPEs in block 00 to 1F
[    0.212841] ACPI: \_SB_.PCI0.GPP0.PWRS: New power resource
[    0.212931] ACPI: \_SB_.PCI0.GPP0.SWUS.PWRS: New power resource
[    0.213239] ACPI: \_SB_.PCI0.GPP1.PWRS: New power resource
[    0.213538] ACPI: \_SB_.PCI0.GPP1.SWUS.PWRS: New power resource
[    0.213631] ACPI: \_SB_.PCI0.GPP3.P0NV: New power resource
[    0.213827] ACPI: \_SB_.PCI0.GPP4.PWSR: New power resource
[    0.214099] ACPI: \_SB_.PCI0.GPP5.PWSR: New power resource
[    0.214291] ACPI: \_SB_.PCI0.GPP6.PWSR: New power resource
[    0.214478] ACPI: \_SB_.PCI0.GPP7.P0WW: New power resource
[    0.214671] ACPI: \_SB_.PCI0.GPPA.PWRS: New power resource
[    0.214741] ACPI: \_SB_.PCI0.GPPA.VGA_.PWRS: New power resource
[    0.214842] ACPI: \_SB_.PCI0.GPPA.ACP_.PWRS: New power resource
[    0.214991] ACPI: \_SB_.PCI0.GPPA.AZAL.PWRS: New power resource
[    0.215113] ACPI: \_SB_.PCI0.GPPA.HDAU.PWRS: New power resource
[    0.215228] ACPI: \_SB_.PCI0.GPPA.XHC1.PWRS: New power resource
[    0.215555] ACPI: \_SB_.PCI0.GPPC.XHC0.PWRS: New power resource
[    0.216105] ACPI: \_SB_.PCI0.GPPC.XHC3.PWRS: New power resource
[    0.216410] ACPI: \_SB_.PCI0.GPPC.XHC4.PWRS: New power resource
[    0.216712] ACPI: \_SB_.PCI0.GPPC.NHI0.PWRS: New power resource
[    0.216894] ACPI: \_SB_.PCI0.GPPC.NHI1.PWRS: New power resource
[    0.218839] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff])
[    0.218844] acpi PNP0A08:00: _OSC: OS supports [ExtendedConfig ASPM ClockPM Segments MSI HPX-Type3]
[    0.218876] acpi PNP0A08:00: _OSC: OS now controls [PCIeHotplug SHPCHotplug PME AER PCIeCapability LTR]
[    0.219070] PCI host bridge to bus 0000:00
[    0.219072] pci_bus 0000:00: root bus resource [io  0x0000-0x03af window]
[    0.219073] pci_bus 0000:00: root bus resource [io  0x03e0-0x0cf7 window]
[    0.219074] pci_bus 0000:00: root bus resource [io  0x03b0-0x03df window]
[    0.219074] pci_bus 0000:00: root bus resource [io  0x0d00-0xffff window]
[    0.219075] pci_bus 0000:00: root bus resource [mem 0x000a0000-0x000dffff window]
[    0.219076] pci_bus 0000:00: root bus resource [mem 0x80000000-0xdfffffff window]
[    0.219076] pci_bus 0000:00: root bus resource [mem 0xf0000000-0xfcffffff window]
[    0.219077] pci_bus 0000:00: root bus resource [mem 0x880000000-0x7fffffffff window]
[    0.219078] pci_bus 0000:00: root bus resource [bus 00-ff]
[    0.219089] pci 0000:00:00.0: [1022:1507] type 00 class 0x060000 conventional PCI endpoint
[    0.219168] pci 0000:00:00.2: [1022:1508] type 00 class 0x080600 conventional PCI endpoint
[    0.219248] pci 0000:00:01.0: [1022:1509] type 00 class 0x060000 conventional PCI endpoint
[    0.219308] pci 0000:00:01.1: [1022:150a] type 01 class 0x060400 PCIe Root Port
[    0.219414] pci 0000:00:01.1: PCI bridge to [bus 01-60]
[    0.219418] pci 0000:00:01.1:   bridge window [io  0xa000-0xdfff]
[    0.219421] pci 0000:00:01.1:   bridge window [mem 0xc4000000-0xdbffffff]
[    0.219466] pci 0000:00:01.1:   bridge window [mem 0x5800000000-0x77ffffffff 64bit pref]
[    0.219475] pci 0000:00:01.1: enabling Extended Tags
[    0.219634] pci 0000:00:01.1: PME# supported from D0 D3hot D3cold
[    0.219976] pci 0000:00:01.2: [1022:150a] type 01 class 0x060400 PCIe Root Port
[    0.220105] pci 0000:00:01.2: PCI bridge to [bus 61-c0]
[    0.220109] pci 0000:00:01.2:   bridge window [io  0x6000-0x9fff]
[    0.220111] pci 0000:00:01.2:   bridge window [mem 0xac000000-0xc3ffffff]
[    0.220134] pci 0000:00:01.2:   bridge window [mem 0x3800000000-0x57ffffffff 64bit pref]
[    0.220143] pci 0000:00:01.2: enabling Extended Tags
[    0.220292] pci 0000:00:01.2: PME# supported from D0 D3hot D3cold
[    0.220621] pci 0000:00:02.0: [1022:1509] type 00 class 0x060000 conventional PCI endpoint
[    0.220674] pci 0000:00:02.1: [1022:150b] type 01 class 0x060400 PCIe Root Port
[    0.220692] pci 0000:00:02.1: PCI bridge to [bus c1]
[    0.220698] pci 0000:00:02.1:   bridge window [mem 0xdce00000-0xdcefffff]
[    0.220768] pci 0000:00:02.1: PME# supported from D0 D3hot D3cold
[    0.220904] pci 0000:00:02.3: [1022:150b] type 01 class 0x060400 PCIe Root Port
[    0.220923] pci 0000:00:02.3: PCI bridge to [bus c2]
[    0.220927] pci 0000:00:02.3:   bridge window [io  0xf000-0xffff]
[    0.220929] pci 0000:00:02.3:   bridge window [mem 0xdcd00000-0xdcdfffff]
[    0.220943] pci 0000:00:02.3: enabling Extended Tags
[    0.221000] pci 0000:00:02.3: PME# supported from D0 D3hot D3cold
[    0.221134] pci 0000:00:02.5: [1022:150b] type 01 class 0x060400 PCIe Root Port
[    0.221153] pci 0000:00:02.5: PCI bridge to [bus c3]
[    0.221158] pci 0000:00:02.5:   bridge window [mem 0xdcc00000-0xdccfffff]
[    0.221171] pci 0000:00:02.5: enabling Extended Tags
[    0.221228] pci 0000:00:02.5: PME# supported from D0 D3hot D3cold
[    0.221355] pci 0000:00:03.0: [1022:1509] type 00 class 0x060000 conventional PCI endpoint
[    0.221413] pci 0000:00:08.0: [1022:1509] type 00 class 0x060000 conventional PCI endpoint
[    0.221462] pci 0000:00:08.1: [1022:150c] type 01 class 0x060400 PCIe Root Port
[    0.221476] pci 0000:00:08.1: PCI bridge to [bus c4]
[    0.221479] pci 0000:00:08.1:   bridge window [io  0xe000-0xefff]
[    0.221480] pci 0000:00:08.1:   bridge window [mem 0xdc000000-0xdc4fffff]
[    0.221485] pci 0000:00:08.1:   bridge window [mem 0x7800000000-0x78107fffff 64bit pref]
[    0.221490] pci 0000:00:08.1: enabling Extended Tags
[    0.221525] pci 0000:00:08.1: PME# supported from D0 D3hot D3cold
[    0.221608] pci 0000:00:08.2: [1022:150c] type 01 class 0x060400 PCIe Root Port
[    0.221638] pci 0000:00:08.2: PCI bridge to [bus c5]
[    0.221641] pci 0000:00:08.2:   bridge window [mem 0xdca00000-0xdcbfffff]
[    0.221646] pci 0000:00:08.2:   bridge window [mem 0x7810900000-0x78109fffff 64bit pref]
[    0.221651] pci 0000:00:08.2: enabling Extended Tags
[    0.221686] pci 0000:00:08.2: PME# supported from D0 D3hot D3cold
[    0.221761] pci 0000:00:08.3: [1022:150c] type 01 class 0x060400 PCIe Root Port
[    0.221775] pci 0000:00:08.3: PCI bridge to [bus c6]
[    0.221779] pci 0000:00:08.3:   bridge window [mem 0xdc600000-0xdc9fffff]
[    0.221788] pci 0000:00:08.3: enabling Extended Tags
[    0.221823] pci 0000:00:08.3: PME# supported from D0 D3hot D3cold
[    0.221942] pci 0000:00:14.0: [1022:790b] type 00 class 0x0c0500 conventional PCI endpoint
[    0.222034] pci 0000:00:14.3: [1022:790e] type 00 class 0x060100 conventional PCI endpoint
[    0.222133] pci 0000:00:18.0: [1022:16f8] type 00 class 0x060000 conventional PCI endpoint
[    0.222157] pci 0000:00:18.1: [1022:16f9] type 00 class 0x060000 conventional PCI endpoint
[    0.222181] pci 0000:00:18.2: [1022:16fa] type 00 class 0x060000 conventional PCI endpoint
[    0.222206] pci 0000:00:18.3: [1022:16fb] type 00 class 0x060000 conventional PCI endpoint
[    0.222232] pci 0000:00:18.4: [1022:16fc] type 00 class 0x060000 conventional PCI endpoint
[    0.222258] pci 0000:00:18.5: [1022:16fd] type 00 class 0x060000 conventional PCI endpoint
[    0.222281] pci 0000:00:18.6: [1022:16fe] type 00 class 0x060000 conventional PCI endpoint
[    0.222305] pci 0000:00:18.7: [1022:16ff] type 00 class 0x060000 conventional PCI endpoint
[    0.222393] pci 0000:00:01.1: PCI bridge to [bus 01-60]
[    0.222469] pci 0000:00:01.2: PCI bridge to [bus 61-c0]
[    0.222526] pci 0000:c1:00.0: [1344:5416] type 00 class 0x010802 PCIe Endpoint
[    0.222542] pci 0000:c1:00.0: BAR 0 [mem 0xdce00000-0xdce03fff 64bit]
[    0.222788] pci 0000:00:02.1: PCI bridge to [bus c1]
[    0.222846] pci 0000:c2:00.0: [10ec:8125] type 00 class 0x020000 PCIe Endpoint
[    0.222860] pci 0000:c2:00.0: BAR 0 [io  0xf000-0xf0ff]
[    0.222877] pci 0000:c2:00.0: BAR 2 [mem 0xdcd00000-0xdcd0ffff 64bit]
[    0.222889] pci 0000:c2:00.0: BAR 4 [mem 0xdcd10000-0xdcd13fff 64bit]
[    0.222988] pci 0000:c2:00.0: supports D1 D2
[    0.222988] pci 0000:c2:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[    0.223215] pci 0000:00:02.3: PCI bridge to [bus c2]
[    0.223280] pci 0000:c3:00.0: [8086:2723] type 00 class 0x028000 PCIe Endpoint
[    0.223301] pci 0000:c3:00.0: BAR 0 [mem 0xdcc00000-0xdcc03fff 64bit]
[    0.223415] pci 0000:c3:00.0: PME# supported from D0 D3hot D3cold
[    0.223583] pci 0000:00:02.5: PCI bridge to [bus c3]
[    0.223638] pci 0000:c4:00.0: [1002:150e] type 00 class 0x038000 PCIe Legacy Endpoint
[    0.223650] pci 0000:c4:00.0: BAR 0 [mem 0x7800000000-0x780fffffff 64bit pref]
[    0.223658] pci 0000:c4:00.0: BAR 2 [mem 0xdc000000-0xdc1fffff 64bit pref]
[    0.223663] pci 0000:c4:00.0: BAR 4 [io  0xe000-0xe0ff]
[    0.223668] pci 0000:c4:00.0: BAR 5 [mem 0xdc400000-0xdc47ffff]
[    0.223676] pci 0000:c4:00.0: enabling Extended Tags
[    0.223733] pci 0000:c4:00.0: PME# supported from D1 D2 D3hot D3cold
[    0.223842] pci 0000:c4:00.1: [1002:1640] type 00 class 0x040300 PCIe Legacy Endpoint
[    0.223849] pci 0000:c4:00.1: BAR 0 [mem 0xdc4c8000-0xdc4cbfff]
[    0.223873] pci 0000:c4:00.1: enabling Extended Tags
[    0.223906] pci 0000:c4:00.1: PME# supported from D1 D2 D3hot D3cold
[    0.223969] pci 0000:c4:00.2: [1022:17e0] type 00 class 0x108000 PCIe Endpoint
[    0.223983] pci 0000:c4:00.2: BAR 2 [mem 0xdc300000-0xdc3fffff]
[    0.223993] pci 0000:c4:00.2: BAR 5 [mem 0xdc4cc000-0xdc4cdfff]
[    0.224000] pci 0000:c4:00.2: enabling Extended Tags
[    0.224096] pci 0000:c4:00.4: [1022:151e] type 00 class 0x0c0330 PCIe Endpoint
[    0.224107] pci 0000:c4:00.4: BAR 0 [mem 0xdc200000-0xdc2fffff 64bit]
[    0.224134] pci 0000:c4:00.4: enabling Extended Tags
[    0.224169] pci 0000:c4:00.4: PME# supported from D0 D3hot D3cold
[    0.224241] pci 0000:c4:00.5: [1022:15e2] type 00 class 0x048000 PCIe Endpoint
[    0.224248] pci 0000:c4:00.5: BAR 0 [mem 0xdc480000-0xdc4bffff]
[    0.224258] pci 0000:c4:00.5: BAR 2 [mem 0x7810000000-0x78107fffff 64bit pref]
[    0.224271] pci 0000:c4:00.5: enabling Extended Tags
[    0.224305] pci 0000:c4:00.5: PME# supported from D0 D3hot D3cold
[    0.224367] pci 0000:c4:00.6: [1022:15e3] type 00 class 0x040300 PCIe Endpoint
[    0.224375] pci 0000:c4:00.6: BAR 0 [mem 0xdc4c0000-0xdc4c7fff]
[    0.224398] pci 0000:c4:00.6: enabling Extended Tags
[    0.224432] pci 0000:c4:00.6: PME# supported from D0 D3hot D3cold
[    0.224506] pci 0000:00:08.1: PCI bridge to [bus c4]
[    0.224548] pci 0000:c5:00.0: [1022:150d] type 00 class 0x130000 PCIe Endpoint
[    0.224578] pci 0000:c5:00.0: enabling Extended Tags
[    0.224703] pci 0000:c5:00.1: [1022:17f0] type 00 class 0x118000 PCIe Endpoint
[    0.224715] pci 0000:c5:00.1: BAR 0 [mem 0xdca00000-0xdcafffff]
[    0.224719] pci 0000:c5:00.1: BAR 1 [mem 0xdcb00000-0xdcb01fff]
[    0.224725] pci 0000:c5:00.1: BAR 2 [mem 0x7810900000-0x781097ffff 64bit pref]
[    0.224729] pci 0000:c5:00.1: BAR 4 [mem 0xdcb03000-0xdcb03fff]
[    0.224732] pci 0000:c5:00.1: BAR 5 [mem 0xdcb02000-0xdcb02fff]
[    0.224740] pci 0000:c5:00.1: enabling Extended Tags
[    0.224847] pci 0000:00:08.2: PCI bridge to [bus c5]
[    0.224896] pci 0000:c6:00.0: [1022:151f] type 00 class 0x0c0330 PCIe Endpoint
[    0.224908] pci 0000:c6:00.0: BAR 0 [mem 0xdc800000-0xdc8fffff 64bit]
[    0.224934] pci 0000:c6:00.0: enabling Extended Tags
[    0.224979] pci 0000:c6:00.0: PME# supported from D0 D3hot D3cold
[    0.225071] pci 0000:c6:00.3: [1022:151a] type 00 class 0x0c0330 PCIe Endpoint
[    0.225082] pci 0000:c6:00.3: BAR 0 [mem 0xdc700000-0xdc7fffff 64bit]
[    0.225108] pci 0000:c6:00.3: enabling Extended Tags
[    0.225144] pci 0000:c6:00.3: PME# supported from D0 D3hot D3cold
[    0.225209] pci 0000:c6:00.4: [1022:151b] type 00 class 0x0c0330 PCIe Endpoint
[    0.225221] pci 0000:c6:00.4: BAR 0 [mem 0xdc600000-0xdc6fffff 64bit]
[    0.225247] pci 0000:c6:00.4: enabling Extended Tags
[    0.225282] pci 0000:c6:00.4: PME# supported from D0 D3hot D3cold
[    0.225345] pci 0000:c6:00.5: [1022:151c] type 00 class 0x0c0340 PCIe Endpoint
[    0.225359] pci 0000:c6:00.5: BAR 0 [mem 0xdc980000-0xdc9fffff 64bit]
[    0.225390] pci 0000:c6:00.5: enabling Extended Tags
[    0.225425] pci 0000:c6:00.5: PME# supported from D0 D3hot D3cold
[    0.225489] pci 0000:c6:00.6: [1022:151d] type 00 class 0x0c0340 PCIe Endpoint
[    0.225504] pci 0000:c6:00.6: BAR 0 [mem 0xdc900000-0xdc97ffff 64bit]
[    0.225534] pci 0000:c6:00.6: enabling Extended Tags
[    0.225570] pci 0000:c6:00.6: PME# supported from D0 D3hot D3cold
[    0.225641] pci 0000:00:08.3: PCI bridge to [bus c6]
[    0.227427] ACPI: PCI: Interrupt link LNKA configured for IRQ 0
[    0.227444] ACPI: PCI: Interrupt link LNKB configured for IRQ 0
[    0.227458] ACPI: PCI: Interrupt link LNKC configured for IRQ 0
[    0.227476] ACPI: PCI: Interrupt link LNKD configured for IRQ 0
[    0.227491] ACPI: PCI: Interrupt link LNKE configured for IRQ 0
[    0.227504] ACPI: PCI: Interrupt link LNKF configured for IRQ 0
[    0.227516] ACPI: PCI: Interrupt link LNKG configured for IRQ 0
[    0.227528] ACPI: PCI: Interrupt link LNKH configured for IRQ 0
[    0.228620] Low-power S0 idle used by default for system suspend
[    0.228731] iommu: Default domain type: Translated
[    0.228731] iommu: DMA domain TLB invalidation policy: lazy mode
[    0.228731] pps_core: LinuxPPS API ver. 1 registered
[    0.228731] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.228731] PTP clock support registered
[    0.228731] EDAC MC: Ver: 3.0.0
[    0.228731] efivars: Registered efivars operations
[    0.228731] NetLabel: Initializing
[    0.228731] NetLabel:  domain hash size = 128
[    0.228731] NetLabel:  protocols = UNLABELED CIPSOv4 CALIPSO
[    0.228731] NetLabel:  unlabeled traffic allowed by default
[    0.228731] PCI: Using ACPI for IRQ routing
[    0.237019] PCI: pci_cache_line_size set to 64 bytes
[    0.237077] e820: reserve RAM buffer [mem 0x09a7f000-0x0bffffff]
[    0.237078] e820: reserve RAM buffer [mem 0x0a200000-0x0bffffff]
[    0.237079] e820: reserve RAM buffer [mem 0x5ac79018-0x5bffffff]
[    0.237079] e820: reserve RAM buffer [mem 0x62f00000-0x63ffffff]
[    0.237080] e820: reserve RAM buffer [mem 0x6817f000-0x6bffffff]
[    0.237080] e820: reserve RAM buffer [mem 0x79ff7000-0x7bffffff]
[    0.237080] e820: reserve RAM buffer [mem 0x79fff000-0x7bffffff]
[    0.237080] e820: reserve RAM buffer [mem 0x77e180000-0x77fffffff]
[    0.237101] vgaarb: loaded
[    0.237101] hpet0: at MMIO 0xfed00000, IRQs 2, 8, 0
[    0.237101] hpet0: 3 comparators, 32-bit 14.318180 MHz counter
[    0.240230] clocksource: Switched to clocksource tsc-early
[    0.240236] VFS: Disk quotas dquot_6.6.0
[    0.240236] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    0.240236] AppArmor: AppArmor Filesystem Enabled
[    0.240236] pnp: PnP ACPI init
[    0.240236] system 00:00: [io  0x0a00-0x0a1f] has been reserved
[    0.240236] system 00:00: [io  0x0a20-0x0a2f] has been reserved
[    0.240236] system 00:00: [io  0x0a30-0x0a3f] has been reserved
[    0.240236] system 00:02: [io  0x04d0-0x04d1] has been reserved
[    0.240236] system 00:02: [io  0x040b] has been reserved
[    0.240236] system 00:02: [io  0x04d6] has been reserved
[    0.240236] system 00:02: [io  0x0c00-0x0c01] has been reserved
[    0.240236] system 00:02: [io  0x0c14] has been reserved
[    0.240236] system 00:02: [io  0x0c50-0x0c51] has been reserved
[    0.240236] system 00:02: [io  0x0c52] has been reserved
[    0.240236] system 00:02: [io  0x0c6c] has been reserved
[    0.240236] system 00:02: [io  0x0c6f] has been reserved
[    0.240236] system 00:02: [io  0x0cd0-0x0cd1] has been reserved
[    0.240236] system 00:02: [io  0x0cd2-0x0cd3] has been reserved
[    0.240236] system 00:02: [io  0x0cd4-0x0cd5] has been reserved
[    0.240236] system 00:02: [io  0x0cd6-0x0cd7] has been reserved
[    0.240236] system 00:02: [io  0x0cd8-0x0cdf] has been reserved
[    0.240236] system 00:02: [io  0x0800-0x089f] has been reserved
[    0.240236] system 00:02: [io  0x0b00-0x0b0f] has been reserved
[    0.240236] system 00:02: [io  0x0b20-0x0b3f] has been reserved
[    0.240236] system 00:02: [io  0x0900-0x090f] has been reserved
[    0.240236] system 00:02: [io  0x0910-0x091f] has been reserved
[    0.240236] system 00:02: [mem 0xfec00000-0xfec00fff] could not be reserved
[    0.240236] system 00:02: [mem 0xfec01000-0xfec01fff] could not be reserved
[    0.240236] system 00:02: [mem 0xfedc0000-0xfedc0fff] has been reserved
[    0.240236] system 00:02: [mem 0xfee00000-0xfee00fff] has been reserved
[    0.240236] system 00:02: [mem 0xfed80000-0xfed8ffff] could not be reserved
[    0.240236] system 00:02: [mem 0xfec10000-0xfec10fff] has been reserved
[    0.240236] system 00:02: [mem 0xff000000-0xffffffff] has been reserved
[    0.241983] system 00:03: [mem 0xe0000000-0xefffffff] has been reserved
[    0.242150] pnp: PnP ACPI: found 4 devices
[    0.247965] clocksource: acpi_pm: mask: 0xffffff max_cycles: 0xffffff, max_idle_ns: 2085701024 ns
[    0.248012] NET: Registered PF_INET protocol family
[    0.248080] IP idents hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    0.253872] tcp_listen_portaddr_hash hash table entries: 16384 (order: 6, 262144 bytes, linear)
[    0.253891] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.253949] TCP established hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    0.254074] TCP bind hash table entries: 65536 (order: 9, 2097152 bytes, linear)
[    0.254141] TCP: Hash tables configured (established 262144 bind 65536)
[    0.254267] MPTCP token hash table entries: 32768 (order: 7, 786432 bytes, linear)
[    0.254310] UDP hash table entries: 16384 (order: 7, 524288 bytes, linear)
[    0.254347] UDP-Lite hash table entries: 16384 (order: 7, 524288 bytes, linear)
[    0.254400] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.254406] NET: Registered PF_XDP protocol family

[/details]

AndrewC

Beelink CS-June

All kernel messages during boot (2 of 2 due to board limitations)

[    0.254417] pci 0000:00:01.1: PCI bridge to [bus 01-60]
[    0.254423] pci 0000:00:01.1:   bridge window [io  0xa000-0xdfff]
[    0.254432] pci 0000:00:01.1:   bridge window [mem 0xc4000000-0xdbffffff]
[    0.254458] pci 0000:00:01.1:   bridge window [mem 0x5800000000-0x77ffffffff 64bit pref]
[    0.254461] pci 0000:00:01.2: PCI bridge to [bus 61-c0]
[    0.254463] pci 0000:00:01.2:   bridge window [io  0x6000-0x9fff]
[    0.254488] pci 0000:00:01.2:   bridge window [mem 0xac000000-0xc3ffffff]
[    0.254490] pci 0000:00:01.2:   bridge window [mem 0x3800000000-0x57ffffffff 64bit pref]
[    0.254493] pci 0000:00:02.1: PCI bridge to [bus c1]
[    0.254496] pci 0000:00:02.1:   bridge window [mem 0xdce00000-0xdcefffff]
[    0.254500] pci 0000:00:02.3: PCI bridge to [bus c2]
[    0.254501] pci 0000:00:02.3:   bridge window [io  0xf000-0xffff]
[    0.254503] pci 0000:00:02.3:   bridge window [mem 0xdcd00000-0xdcdfffff]
[    0.254508] pci 0000:00:02.5: PCI bridge to [bus c3]
[    0.254510] pci 0000:00:02.5:   bridge window [mem 0xdcc00000-0xdccfffff]
[    0.254515] pci 0000:00:08.1: PCI bridge to [bus c4]
[    0.254520] pci 0000:00:08.1:   bridge window [io  0xe000-0xefff]
[    0.254522] pci 0000:00:08.1:   bridge window [mem 0xdc000000-0xdc4fffff]
[    0.254523] pci 0000:00:08.1:   bridge window [mem 0x7800000000-0x78107fffff 64bit pref]
[    0.254526] pci 0000:00:08.2: PCI bridge to [bus c5]
[    0.254527] pci 0000:00:08.2:   bridge window [mem 0xdca00000-0xdcbfffff]
[    0.254529] pci 0000:00:08.2:   bridge window [mem 0x7810900000-0x78109fffff 64bit pref]
[    0.254531] pci 0000:00:08.3: PCI bridge to [bus c6]
[    0.254533] pci 0000:00:08.3:   bridge window [mem 0xdc600000-0xdc9fffff]
[    0.254537] pci_bus 0000:00: resource 4 [io  0x0000-0x03af window]
[    0.254537] pci_bus 0000:00: resource 5 [io  0x03e0-0x0cf7 window]
[    0.254538] pci_bus 0000:00: resource 6 [io  0x03b0-0x03df window]
[    0.254538] pci_bus 0000:00: resource 7 [io  0x0d00-0xffff window]
[    0.254539] pci_bus 0000:00: resource 8 [mem 0x000a0000-0x000dffff window]
[    0.254539] pci_bus 0000:00: resource 9 [mem 0x80000000-0xdfffffff window]
[    0.254540] pci_bus 0000:00: resource 10 [mem 0xf0000000-0xfcffffff window]
[    0.254540] pci_bus 0000:00: resource 11 [mem 0x880000000-0x7fffffffff window]
[    0.254541] pci_bus 0000:01: resource 0 [io  0xa000-0xdfff]
[    0.254541] pci_bus 0000:01: resource 1 [mem 0xc4000000-0xdbffffff]
[    0.254542] pci_bus 0000:01: resource 2 [mem 0x5800000000-0x77ffffffff 64bit pref]
[    0.254542] pci_bus 0000:61: resource 0 [io  0x6000-0x9fff]
[    0.254543] pci_bus 0000:61: resource 1 [mem 0xac000000-0xc3ffffff]
[    0.254543] pci_bus 0000:61: resource 2 [mem 0x3800000000-0x57ffffffff 64bit pref]
[    0.254544] pci_bus 0000:c1: resource 1 [mem 0xdce00000-0xdcefffff]
[    0.254545] pci_bus 0000:c2: resource 0 [io  0xf000-0xffff]
[    0.254545] pci_bus 0000:c2: resource 1 [mem 0xdcd00000-0xdcdfffff]
[    0.254546] pci_bus 0000:c3: resource 1 [mem 0xdcc00000-0xdccfffff]
[    0.254546] pci_bus 0000:c4: resource 0 [io  0xe000-0xefff]
[    0.254547] pci_bus 0000:c4: resource 1 [mem 0xdc000000-0xdc4fffff]
[    0.254547] pci_bus 0000:c4: resource 2 [mem 0x7800000000-0x78107fffff 64bit pref]
[    0.254548] pci_bus 0000:c5: resource 1 [mem 0xdca00000-0xdcbfffff]
[    0.254548] pci_bus 0000:c5: resource 2 [mem 0x7810900000-0x78109fffff 64bit pref]
[    0.254549] pci_bus 0000:c6: resource 1 [mem 0xdc600000-0xdc9fffff]
[    0.254610] pci 0000:c4:00.1: D0 power state depends on 0000:c4:00.0
[    0.254826] PCI: CLS 64 bytes, default 64
[    0.254851] pci 0000:00:00.2: AMD-Vi: IOMMU performance counters supported
[    0.254876] platform MSFT0201:00: Adding to iommu group 0
[    0.254900] Trying to unpack rootfs image as initramfs...
[    0.254995] pci 0000:00:01.0: Adding to iommu group 1
[    0.255003] pci 0000:00:01.1: Adding to iommu group 2
[    0.255010] pci 0000:00:01.2: Adding to iommu group 3
[    0.255021] pci 0000:00:02.0: Adding to iommu group 4
[    0.255028] pci 0000:00:02.1: Adding to iommu group 5
[    0.255035] pci 0000:00:02.3: Adding to iommu group 6
[    0.255041] pci 0000:00:02.5: Adding to iommu group 7
[    0.255049] pci 0000:00:03.0: Adding to iommu group 8
[    0.255064] pci 0000:00:08.0: Adding to iommu group 9
[    0.255070] pci 0000:00:08.1: Adding to iommu group 10
[    0.255077] pci 0000:00:08.2: Adding to iommu group 11
[    0.255084] pci 0000:00:08.3: Adding to iommu group 12
[    0.255095] pci 0000:00:14.0: Adding to iommu group 13
[    0.255101] pci 0000:00:14.3: Adding to iommu group 13
[    0.255125] pci 0000:00:18.0: Adding to iommu group 14
[    0.255132] pci 0000:00:18.1: Adding to iommu group 14
[    0.255138] pci 0000:00:18.2: Adding to iommu group 14
[    0.255143] pci 0000:00:18.3: Adding to iommu group 14
[    0.255149] pci 0000:00:18.4: Adding to iommu group 14
[    0.255154] pci 0000:00:18.5: Adding to iommu group 14
[    0.255160] pci 0000:00:18.6: Adding to iommu group 14
[    0.255166] pci 0000:00:18.7: Adding to iommu group 14
[    0.255178] pci 0000:c1:00.0: Adding to iommu group 15
[    0.255185] pci 0000:c2:00.0: Adding to iommu group 16
[    0.255193] pci 0000:c3:00.0: Adding to iommu group 17
[    0.255221] pci 0000:c4:00.0: Adding to iommu group 18
[    0.255229] pci 0000:c4:00.1: Adding to iommu group 19
[    0.255237] pci 0000:c4:00.2: Adding to iommu group 20
[    0.255244] pci 0000:c4:00.4: Adding to iommu group 21
[    0.255252] pci 0000:c4:00.5: Adding to iommu group 22
[    0.255261] pci 0000:c4:00.6: Adding to iommu group 23
[    0.255269] pci 0000:c5:00.0: Adding to iommu group 24
[    0.255278] pci 0000:c5:00.1: Adding to iommu group 25
[    0.255285] pci 0000:c6:00.0: Adding to iommu group 26
[    0.255293] pci 0000:c6:00.3: Adding to iommu group 27
[    0.255301] pci 0000:c6:00.4: Adding to iommu group 28
[    0.255309] pci 0000:c6:00.5: Adding to iommu group 29
[    0.255316] pci 0000:c6:00.6: Adding to iommu group 30
[    0.258188] AMD-Vi: Extended features (0x246577efa2254afa, 0x10): PPR NX GT [5] IA GA PC GA_vAPIC
[    0.258192] AMD-Vi: Interrupt remapping enabled
[    0.258288] AMD-Vi: Virtual APIC enabled
[    0.258319] PCI-DMA: Using software bounce buffering for IO (SWIOTLB)
[    0.258332] software IO TLB: mapped [mem 0x0000000063c94000-0x0000000067c94000] (64MB)
[    0.258348] LVT offset 0 assigned for vector 0x400
[    0.260473] perf: AMD IBS detected (0x00081bff)
[    0.264377] amd_uncore: 8 amd_df counters detected
[    0.264387] amd_uncore: 6 amd_l3 counters detected
[    0.264394] amd_uncore: 4 amd_umc_0 counters detected
[    0.264400] amd_uncore: 4 amd_umc_1 counters detected
[    0.264404] amd_uncore: 4 amd_umc_2 counters detected
[    0.264409] amd_uncore: 4 amd_umc_3 counters detected
[    0.264636] perf/amd_iommu: Detected AMD IOMMU #0 (2 banks, 4 counters/bank).
[    0.265131] Initialise system trusted keyrings
[    0.265138] Key type blacklist registered
[    0.265165] workingset: timestamp_bits=36 max_order=23 bucket_order=0
[    0.265170] zbud: loaded
[    0.265237] fuse: init (API version 7.41)
[    0.265362] integrity: Platform Keyring initialized
[    0.265363] integrity: Machine keyring initialized
[    0.271860] Key type asymmetric registered
[    0.271861] Asymmetric key parser 'x509' registered
[    0.299275] Freeing initrd memory: 38200K
[    0.305111] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 246)
[    0.305159] io scheduler mq-deadline registered
[    0.308643] ledtrig-cpu: registered to indicate activity on CPUs
[    0.308874] pcieport 0000:00:01.1: PME: Signaling with IRQ 39
[    0.308934] pcieport 0000:00:01.1: AER: enabled with IRQ 39
[    0.308959] pcieport 0000:00:01.1: pciehp: Slot #0 AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+ Interlock- NoCompl+ IbPresDis- LLActRep+
[    0.309043] pcieport 0000:00:01.1: DPC: enabled with IRQ 39
[    0.309044] pcieport 0000:00:01.1: DPC: error containment capabilities: Int Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 6, DL_ActiveErr+
[    0.309337] pcieport 0000:00:01.2: PME: Signaling with IRQ 40
[    0.309395] pcieport 0000:00:01.2: AER: enabled with IRQ 40
[    0.309420] pcieport 0000:00:01.2: pciehp: Slot #0 AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+ Interlock- NoCompl+ IbPresDis- LLActRep+
[    0.309500] pcieport 0000:00:01.2: DPC: enabled with IRQ 40
[    0.309501] pcieport 0000:00:01.2: DPC: error containment capabilities: Int Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 6, DL_ActiveErr+
[    0.309689] pcieport 0000:00:02.1: PME: Signaling with IRQ 41
[    0.309754] pcieport 0000:00:02.1: AER: enabled with IRQ 41
[    0.309886] pcieport 0000:00:02.3: PME: Signaling with IRQ 42
[    0.309929] pcieport 0000:00:02.3: AER: enabled with IRQ 42
[    0.310063] pcieport 0000:00:02.5: PME: Signaling with IRQ 43
[    0.310109] pcieport 0000:00:02.5: AER: enabled with IRQ 43
[    0.310242] pcieport 0000:00:08.1: PME: Signaling with IRQ 44
[    0.310376] pcieport 0000:00:08.2: PME: Signaling with IRQ 45
[    0.310489] pcieport 0000:00:08.3: PME: Signaling with IRQ 46
[    0.310551] shpchp: Standard Hot Plug PCI Controller Driver version: 0.4
[    0.310824] Monitor-Mwait will be used to enter C-1 state
[    0.313781] Estimated ratio of average max frequency by base frequency (times 1024): 1630
[    0.313897] thermal LNXTHERM:00: registered as thermal_zone0
[    0.313898] ACPI: thermal: Thermal Zone [TZ01] (20 C)
[    0.313994] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[    0.314412] Linux agpgart interface v0.103
[    1.272302] tsc: Refined TSC clocksource calibration: 1996.222 MHz
[    1.272325] clocksource: tsc: mask: 0xffffffffffffffff max_cycles: 0x398c7ae93a9, max_idle_ns: 881590667579 ns
[    1.272679] clocksource: Switched to clocksource tsc
[    1.875910] tpm_crb MSFT0101:00: Disabling hwrng
[    1.881213] i8042: PNP: No PS/2 controller found.
[    1.881220] i8042: Probing ports directly.
[    1.916495] serio: i8042 KBD port at 0x60,0x64 irq 1
[    1.916682] mousedev: PS/2 mouse device common for all mice
[    1.916708] rtc_cmos 00:01: RTC can wake from S4
[    1.917330] rtc_cmos 00:01: registered as rtc0
[    1.917376] rtc_cmos 00:01: setting system clock to 2025-09-27T18:30:11 UTC (1758997811)
[    1.917414] rtc_cmos 00:01: alarms up to one month, y3k, 114 bytes nvram
[    1.919427] efifb: probing for efifb
[    1.919435] efifb: framebuffer at 0x7800000000, using 32400k, total 32400k
[    1.919436] efifb: mode is 3840x2160x32, linelength=15360, pages=1
[    1.919437] efifb: scrolling: redraw
[    1.919437] efifb: Truecolor: size=8:8:8:8, shift=24:16:8:0
[    1.919511] Console: switching to colour frame buffer device 240x67
[    1.921935] fb0: EFI VGA frame buffer device
[    1.922052] NET: Registered PF_INET6 protocol family
[    1.925864] Segment Routing with IPv6
[    1.925875] In-situ OAM (IOAM) with IPv6
[    1.925894] mip6: Mobile IPv6
[    1.925898] NET: Registered PF_PACKET protocol family
[    1.925947] mpls_gso: MPLS GSO support
[    1.927604] microcode: Current revision: 0x0b204019
[    1.928466] resctrl: L3 allocation detected
[    1.928468] resctrl: MB allocation detected
[    1.928468] resctrl: SMBA allocation detected
[    1.928468] resctrl: L3 monitoring detected
[    1.928487] IPI shorthand broadcast: enabled
[    1.929284] sched_clock: Marking stable (1928212450, 248602)->(1932300701, -3839649)
[    1.929441] registered taskstats version 1
[    1.929549] Loading compiled-in X.509 certificates
[    1.942580] Loaded X.509 cert 'Build time autogenerated kernel key: bb2acbf068ad1850e6eb40711d963f9ee79426e6'
[    1.943500] Demotion targets for Node 0: null
[    1.943688] Key type .fscrypt registered
[    1.943689] Key type fscrypt-provisioning registered
[    1.960008] Key type encrypted registered
[    1.960032] AppArmor: AppArmor sha256 policy hashing enabled
[    1.960190] integrity: Loading X.509 certificate: UEFI:db
[    1.960278] integrity: Loaded X.509 cert 'Microsoft UEFI CA 2023: 81aa6b3244c935bce0d6628af39827421e32497d'
[    1.960280] integrity: Loading X.509 certificate: UEFI:db
[    1.960297] integrity: Loaded X.509 cert 'Microsoft Corporation: Windows UEFI CA 2023: aefc5fbbbe055d8f8daa585473499417ab5a5272'
[    1.960299] integrity: Loading X.509 certificate: UEFI:db
[    1.960313] integrity: Loaded X.509 cert 'Microsoft Corporation UEFI CA 2011: 13adbf4309bd82709c8cd54f316ed522988a1bd4'
[    1.960314] integrity: Loading X.509 certificate: UEFI:db
[    1.960327] integrity: Loaded X.509 cert 'Microsoft Windows Production PCA 2011: a92902398e16c49778cd90f99e4f9ae17c55af53'
[    1.961267] ima: Allocated hash algorithm: sha256
[    2.067295] ima: No architecture policies found
[    2.067336] evm: Initialising EVM extended attributes:
[    2.067338] evm: security.selinux
[    2.067340] evm: security.SMACK64 (disabled)
[    2.067341] evm: security.SMACK64EXEC (disabled)
[    2.067342] evm: security.SMACK64TRANSMUTE (disabled)
[    2.067343] evm: security.SMACK64MMAP (disabled)
[    2.067343] evm: security.apparmor
[    2.067344] evm: security.ima
[    2.067344] evm: security.capability
[    2.067345] evm: HMAC attrs: 0x1
[    2.069359] RAS: Correctable Errors collector initialized.
[    2.072189] clk: Disabling unused clocks
[    2.072192] PM: genpd: Disabling unused power domains
[    2.073960] Freeing unused decrypted memory: 2028K
[    2.074342] Freeing unused kernel image (initmem) memory: 4144K
[    2.074349] Write protecting the kernel read-only data: 28672k
[    2.074482] Freeing unused kernel image (rodata/data gap) memory: 500K
[    2.092629] x86/mm: Checked W+X mappings: passed, no W+X pages found.
[    2.092633] Run /init as init process
[    2.092633]   with arguments:
[    2.092634]     /init
[    2.092635]   with environment:
[    2.092635]     HOME=/
[    2.092635]     TERM=linux
[    2.092635]     BOOT_IMAGE=/vmlinuz-6.12.43+deb13-amd64
[    2.176972] piix4_smbus 0000:00:14.0: SMBus Host Controller at 0xb00, revision 0
[    2.176979] piix4_smbus 0000:00:14.0: Using register 0x02 for SMBus port selection
[    2.178901] ACPI: video: Video Device [VGA] (multi-head: yes  rom: no  post: no)
[    2.179170] input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/device:1a/LNXVIDEO:00/input/input1
[    2.179297] piix4_smbus 0000:00:14.0: Auxiliary SMBus Host Controller at 0xb20
[    2.189448] sp5100_tco: SP5100/SB800 TCO WatchDog Timer Driver
[    2.189562] sp5100-tco sp5100-tco: Using 0xfeb00000 for watchdog MMIO address
[    2.189761] sp5100-tco sp5100-tco: initialized. heartbeat=60 sec (nowayout=0)
[    2.192399] nvme 0000:c1:00.0: platform quirk: setting simple suspend
[    2.192484] ACPI: bus type USB registered
[    2.192494] nvme nvme0: pci function 0000:c1:00.0
[    2.192513] usbcore: registered new interface driver usbfs
[    2.192520] usbcore: registered new interface driver hub
[    2.192533] usbcore: registered new device driver usb
[    2.196256] ACPI: bus type thunderbolt registered
[    2.196268] r8169 0000:c2:00.0: enabling device (0000 -> 0003)
[    2.206183] ACPI: bus type drm_connector registered
[    2.210579] r8169 0000:c2:00.0 eth0: RTL8125B, b0:41:6f:16:67:37, XID 641, IRQ 66
[    2.210582] r8169 0000:c2:00.0 eth0: jumbo features [frames: 9194 bytes, tx checksumming: ko]
[    2.215296] nvme nvme0: allocated 64 MiB host memory buffer.
[    2.261089] nvme nvme0: 24/0/0 default/read/poll queues
[    2.263542]  nvme0n1: p1 p2 p3
[    2.264753] r8169 0000:c2:00.0 enp194s0: renamed from eth0
[    2.271985] hid: raw HID events driver (C) Jiri Kosina
[    2.283140] xhci_hcd 0000:c4:00.4: xHCI Host Controller
[    2.283151] xhci_hcd 0000:c4:00.4: new USB bus registered, assigned bus number 1
[    2.283591] xhci_hcd 0000:c4:00.4: hcc params 0x0118ffc5 hci version 0x120 quirks 0x0000000200000010
[    2.283884] xhci_hcd 0000:c4:00.4: xHCI Host Controller
[    2.283886] xhci_hcd 0000:c4:00.4: new USB bus registered, assigned bus number 2
[    2.283887] xhci_hcd 0000:c4:00.4: Host supports USB 3.1 Enhanced SuperSpeed
[    2.283922] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
[    2.283924] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.283925] usb usb1: Product: xHCI Host Controller
[    2.283926] usb usb1: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.283927] usb usb1: SerialNumber: 0000:c4:00.4
[    2.284013] hub 1-0:1.0: USB hub found
[    2.284036] hub 1-0:1.0: 1 port detected
[    2.284324] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[    2.284336] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.12
[    2.284338] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.284338] usb usb2: Product: xHCI Host Controller
[    2.284339] usb usb2: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.284340] usb usb2: SerialNumber: 0000:c4:00.4
[    2.284385] hub 2-0:1.0: USB hub found
[    2.284402] hub 2-0:1.0: 1 port detected
[    2.284684] xhci_hcd 0000:c6:00.0: xHCI Host Controller
[    2.284687] xhci_hcd 0000:c6:00.0: new USB bus registered, assigned bus number 3
[    2.285128] xhci_hcd 0000:c6:00.0: hcc params 0x0128ffc5 hci version 0x120 quirks 0x0000000200000010
[    2.285326] xhci_hcd 0000:c6:00.0: xHCI Host Controller
[    2.285328] xhci_hcd 0000:c6:00.0: new USB bus registered, assigned bus number 4
[    2.285329] xhci_hcd 0000:c6:00.0: Host supports USB 3.1 Enhanced SuperSpeed
[    2.285344] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
[    2.285345] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.285346] usb usb3: Product: xHCI Host Controller
[    2.285347] usb usb3: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.285347] usb usb3: SerialNumber: 0000:c6:00.0
[    2.285402] hub 3-0:1.0: USB hub found
[    2.285412] hub 3-0:1.0: 5 ports detected
[    2.286350] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[    2.286358] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.12
[    2.286359] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.286359] usb usb4: Product: xHCI Host Controller
[    2.286360] usb usb4: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.286361] usb usb4: SerialNumber: 0000:c6:00.0
[    2.286406] hub 4-0:1.0: USB hub found
[    2.286424] hub 4-0:1.0: 2 ports detected
[    2.286884] xhci_hcd 0000:c6:00.3: xHCI Host Controller
[    2.286887] xhci_hcd 0000:c6:00.3: new USB bus registered, assigned bus number 5
[    2.287252] xhci_hcd 0000:c6:00.3: hcc params 0x0118ffc5 hci version 0x120 quirks 0x0000000200000010
[    2.287484] xhci_hcd 0000:c6:00.3: xHCI Host Controller
[    2.287485] xhci_hcd 0000:c6:00.3: new USB bus registered, assigned bus number 6
[    2.287486] xhci_hcd 0000:c6:00.3: Host supports USB 3.1 Enhanced SuperSpeed
[    2.287500] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
[    2.287501] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.287502] usb usb5: Product: xHCI Host Controller
[    2.287503] usb usb5: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.287503] usb usb5: SerialNumber: 0000:c6:00.3
[    2.287549] hub 5-0:1.0: USB hub found
[    2.287556] hub 5-0:1.0: 1 port detected
[    2.287791] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[    2.287803] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.12
[    2.287804] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.287805] usb usb6: Product: xHCI Host Controller
[    2.287805] usb usb6: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.287806] usb usb6: SerialNumber: 0000:c6:00.3
[    2.287851] hub 6-0:1.0: USB hub found
[    2.287867] hub 6-0:1.0: 1 port detected
[    2.288198] xhci_hcd 0000:c6:00.4: xHCI Host Controller
[    2.288201] xhci_hcd 0000:c6:00.4: new USB bus registered, assigned bus number 7
[    2.288541] xhci_hcd 0000:c6:00.4: hcc params 0x0118ffc5 hci version 0x120 quirks 0x0000000200000010
[    2.288764] xhci_hcd 0000:c6:00.4: xHCI Host Controller
[    2.288766] xhci_hcd 0000:c6:00.4: new USB bus registered, assigned bus number 8
[    2.288767] xhci_hcd 0000:c6:00.4: Host supports USB 3.1 Enhanced SuperSpeed
[    2.288781] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
[    2.288782] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.288783] usb usb7: Product: xHCI Host Controller
[    2.288784] usb usb7: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.288784] usb usb7: SerialNumber: 0000:c6:00.4
[    2.288832] hub 7-0:1.0: USB hub found
[    2.288840] hub 7-0:1.0: 1 port detected
[    2.289074] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.
[    2.289082] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.12
[    2.289083] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.289084] usb usb8: Product: xHCI Host Controller
[    2.289084] usb usb8: Manufacturer: Linux 6.12.43+deb13-amd64 xhci-hcd
[    2.289085] usb usb8: SerialNumber: 0000:c6:00.4
[    2.289127] hub 8-0:1.0: USB hub found
[    2.289147] hub 8-0:1.0: 1 port detected
[    2.380435] device-mapper: core: CONFIG_IMA_DISABLE_HTABLE is disabled. Duplicate IMA measurements will not be recorded in the IMA log.
[    2.380475] device-mapper: uevent: version 1.0.3
[    2.380557] device-mapper: ioctl: 4.48.0-ioctl (2023-03-01) initialised: dm-devel@lists.linux.dev
[    2.533989] PM: Image not found (code -22)
[    2.536277] usb 3-4: new full-speed USB device number 2 using xhci_hcd
[    2.540281] usb 7-1: new low-speed USB device number 2 using xhci_hcd
[    2.644016] EXT4-fs (dm-0): orphan cleanup on readonly fs
[    2.644224] EXT4-fs (dm-0): mounted filesystem e47f8895-599d-473e-ba01-c31f5af27487 ro with ordered data mode. Quota mode: none.
[    2.670535] Not activating Mandatory Access Control as /sbin/tomoyo-init does not exist.
[    2.699023] systemd[1]: Inserted module 'autofs4'
[    2.712179] usb 7-1: New USB device found, idVendor=04d9, idProduct=a088, bcdDevice= 1.13
[    2.712185] usb 7-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    2.717753] systemd[1]: systemd 257.8-1~deb13u2 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +IPE +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBCRYPTSETUP_PLUGINS +LIBFDISK +PCRE2 +PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD +BPF_FRAMEWORK +BTF -XKBCOMMON -UTMP +SYSVINIT +LIBARCHIVE)
[    2.717757] systemd[1]: Detected architecture x86-64.
[    2.718370] systemd[1]: Hostname set to <fogbow>.
[    2.722383] usb 3-4: New USB device found, idVendor=1d6b, idProduct=a4a7, bcdDevice= 1.00
[    2.722394] usb 3-4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[    2.722399] usb 3-4: Product: POROSVOC
[    2.722402] usb 3-4: Manufacturer: POROSVOC
[    2.722405] usb 3-4: SerialNumber: PNC201_4MIC
[    2.864629] usb 3-5: new full-speed USB device number 3 using xhci_hcd
[    2.870047] systemd[1]: bpf-restrict-fs: LSM BPF program attached
[    2.919516] systemd[1]: Queued start job for default target graphical.target.
[    2.970730] systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[    2.970906] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[    2.971026] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[    2.971107] systemd[1]: Created slice user.slice - User and Session Slice.
[    2.971134] systemd[1]: Started systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch.
[    2.971152] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[    2.971258] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[    2.971268] systemd[1]: Expecting device dev-disk-by\x2duuid-987fffe7\x2db89b\x2d49ea\x2d9d79\x2d273d48d52e4d.device - /dev/disk/by-uuid/987fffe7-b89b-49ea-9d79-273d48d52e4d...
[    2.971272] systemd[1]: Expecting device dev-disk-by\x2duuid-BBB1\x2d9B04.device - /dev/disk/by-uuid/BBB1-9B04...
[    2.971275] systemd[1]: Expecting device dev-mapper-fogbow\x2d\x2dvg\x2dhome.device - /dev/mapper/fogbow--vg-home...
[    2.971278] systemd[1]: Expecting device dev-mapper-fogbow\x2d\x2dvg\x2dswap_1.device - /dev/mapper/fogbow--vg-swap_1...
[    2.971281] systemd[1]: Expecting device dev-mapper-fogbow\x2d\x2dvg\x2dtmp.device - /dev/mapper/fogbow--vg-tmp...
[    2.971284] systemd[1]: Expecting device dev-mapper-fogbow\x2d\x2dvg\x2dvar.device - /dev/mapper/fogbow--vg-var...
[    2.971302] systemd[1]: Reached target paths.target - Path Units.
[    2.971310] systemd[1]: Reached target remote-fs.target - Remote File Systems.
[    2.971316] systemd[1]: Reached target slices.target - Slice Units.
[    2.971359] systemd[1]: Listening on dm-event.socket - Device-mapper event daemon FIFOs.
[    2.971395] systemd[1]: Listening on lvm2-lvmpolld.socket - LVM2 poll daemon socket.
[    2.971785] systemd[1]: Listening on systemd-creds.socket - Credential Encryption/Decryption.
[    2.971811] systemd[1]: Listening on systemd-initctl.socket - initctl Compatibility Named Pipe.
[    2.971850] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[    2.971883] systemd[1]: Listening on systemd-journald.socket - Journal Sockets.
[    2.971904] systemd[1]: systemd-pcrextend.socket - TPM PCR Measurements was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[    2.971910] systemd[1]: systemd-pcrlock.socket - Make TPM PCR Policy was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[    2.971937] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[    2.971955] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[    2.974027] systemd[1]: Mounting dev-hugepages.mount - Huge Pages File System...
[    2.975027] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[    2.975060] systemd[1]: run-lock.mount: Directory /run/lock to mount over is not empty, mounting anyway.
[    2.975676] systemd[1]: Mounting run-lock.mount - Legacy Locks Directory /run/lock...
[    2.976317] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[    2.976707] systemd[1]: Mounting sys-kernel-tracing.mount - Kernel Trace File System...
[    2.977345] systemd[1]: Starting blk-availability.service - Availability of block devices...
[    2.978254] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[    2.978744] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[    2.979226] systemd[1]: Starting lvm2-monitor.service - Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling...
[    2.979830] systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
[    2.980337] systemd[1]: Starting modprobe@drm.service - Load Kernel Module drm...
[    2.980891] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[    2.981311] systemd[1]: Starting modprobe@fuse.service - Load Kernel Module fuse...
[    2.981340] systemd[1]: systemd-fsck-root.service - File System Check on Root Device was skipped because of an unmet condition check (ConditionPathExists=!/run/initramfs/fsck-root).
[    2.981372] systemd[1]: systemd-hibernate-clear.service - Clear Stale Hibernate Storage Info was skipped because of an unmet condition check (ConditionPathExists=/sys/firmware/efi/efivars/HibernateLocation-8cf2644b-4b0b-428f-9387-6d876050dc67).
[    2.982203] systemd[1]: Starting systemd-journald.service - Journal Service...
[    2.983434] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[    2.983446] systemd[1]: systemd-pcrmachine.service - TPM PCR Machine ID Measurement was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[    2.983882] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[    2.983903] systemd[1]: systemd-tpm2-setup-early.service - Early TPM SRK Setup was skipped because of an unmet condition check (ConditionSecurity=measured-uki).
[    2.984267] systemd[1]: Starting systemd-udev-load-credentials.service - Load udev Rules from Credentials...
[    2.984670] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[    2.985489] systemd[1]: Mounted dev-hugepages.mount - Huge Pages File System.
[    2.985535] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[    2.985563] systemd[1]: Mounted run-lock.mount - Legacy Locks Directory /run/lock.
[    2.985594] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[    2.985625] systemd[1]: Mounted sys-kernel-tracing.mount - Kernel Trace File System.
[    2.985730] systemd[1]: Finished blk-availability.service - Availability of block devices.
[    2.985855] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[    2.985938] systemd[1]: modprobe@drm.service: Deactivated successfully.
[    2.986001] systemd[1]: Finished modprobe@drm.service - Load Kernel Module drm.
[    2.986088] systemd[1]: modprobe@fuse.service: Deactivated successfully.
[    2.986143] systemd[1]: Finished modprobe@fuse.service - Load Kernel Module fuse.
[    2.986613] systemd[1]: Mounting sys-fs-fuse-connections.mount - FUSE Control File System...
[    2.987258] systemd[1]: Starting systemd-tmpfiles-setup-dev-early.service - Create Static Device Nodes in /dev gracefully...
[    2.990267] systemd[1]: Mounted sys-fs-fuse-connections.mount - FUSE Control File System.
[    2.990398] systemd[1]: modprobe@configfs.service: Deactivated successfully.
[    2.990494] systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[    2.990556] pstore: Using crash dump compression: deflate
[    2.990954] systemd[1]: Mounting sys-kernel-config.mount - Kernel Configuration File System...
[    2.991612] pstore: Registered efi_pstore as persistent store backend
[    2.992045] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[    2.992189] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[    2.992536] systemd[1]: Finished systemd-udev-load-credentials.service - Load udev Rules from Credentials.
[    2.993920] systemd-journald[550]: Collecting audit messages is disabled.
[    2.995597] systemd[1]: Mounted sys-kernel-config.mount - Kernel Configuration File System.
[    2.999119] systemd[1]: Finished systemd-tmpfiles-setup-dev-early.service - Create Static Device Nodes in /dev gracefully.
[    3.000346] systemd[1]: Finished systemd-modules-load.service - Load Kernel Modules.
[    3.000829] systemd[1]: Starting systemd-sysctl.service - Apply Kernel Variables...
[    3.006448] systemd[1]: Finished systemd-sysctl.service - Apply Kernel Variables.
[    3.007793] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[    3.018722] systemd[1]: Started systemd-journald.service - Journal Service.
[    3.031407] usb 3-5: New USB device found, idVendor=8087, idProduct=0029, bcdDevice= 0.01
[    3.031422] usb 3-5: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    3.033754] EXT4-fs (dm-0): re-mounted e47f8895-599d-473e-ba01-c31f5af27487 r/w.
[    3.128457] input: PC Speaker as /devices/platform/pcspkr/input/input3
[    3.129229] Adding 9883644k swap on /dev/mapper/fogbow--vg-swap_1.  Priority:-2 extents:1 across:9883644k SS
[    3.132940] RAPL PMU: API unit is 2^-32 Joules, 1 fixed counters, 163840 ms ovfl timer
[    3.132944] RAPL PMU: hw unit of domain package 2^-16 Joules
[    3.136356] ccp 0000:c4:00.2: enabling device (0000 -> 0002)
[    3.137762] ccp 0000:c4:00.2: tee enabled
[    3.137765] ccp 0000:c4:00.2: psp enabled
[    3.142301] cryptd: max_cpu_qlen set to 1000
[    3.163321] AES CTR mode by8 optimization enabled
[    3.175408] mc: Linux media interface: v0.10
[    3.178578] snd_acp_pci 0000:c4:00.5: enabling device (0000 -> 0002)
[    3.208623] usbcore: registered new interface driver usbhid
[    3.208629] usbhid: USB HID core driver
[    3.249820] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[    3.254427] input: HID 04d9:a088 as /devices/pci0000:00/0000:00:08.3/0000:c6:00.4/usb7/7-1/7-1:1.0/0003:04D9:A088.0001/input/input4
[    3.254550] Loaded X.509 cert 'benh@debian.org: 577e021cb980e0e820821ba7b54b4961b8b4fadf'
[    3.254639] Loaded X.509 cert 'romain.perier@gmail.com: 3abbc6ec146e09d1b6016ab9d6cf71dd233f0328'
[    3.254727] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[    3.254812] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[    3.261397] Bluetooth: Core ver 2.22
[    3.261409] NET: Registered PF_BLUETOOTH protocol family
[    3.261410] Bluetooth: HCI device and connection manager initialized
[    3.261413] Bluetooth: HCI socket layer initialized
[    3.261415] Bluetooth: L2CAP socket layer initialized
[    3.261417] Bluetooth: SCO socket layer initialized
[    3.266566] snd_hda_intel 0000:c4:00.1: enabling device (0000 -> 0002)
[    3.266591] snd_hda_intel 0000:c4:00.1: Handle vga_switcheroo audio client
[    3.266734] snd_hda_intel 0000:c4:00.6: enabling device (0000 -> 0002)
[    3.281155] usbcore: registered new interface driver btusb
[    3.281171] input: HD-Audio Generic HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:08.1/0000:c4:00.1/sound/card0/input5
[    3.288669] snd_hda_codec_conexant hdaudioC1D0: CX20632: BIOS auto-probing.
[    3.288850] Intel(R) Wireless WiFi driver for Linux
[    3.288895] iwlwifi 0000:c3:00.0: enabling device (0000 -> 0002)
[    3.289341] snd_hda_codec_conexant hdaudioC1D0: autoconfig for CX20632: line_outs=2 (0x1c/0x19/0x0/0x0/0x0) type:hp
[    3.289344] snd_hda_codec_conexant hdaudioC1D0:    speaker_outs=1 (0x18/0x0/0x0/0x0/0x0)
[    3.289346] snd_hda_codec_conexant hdaudioC1D0:    hp_outs=0 (0x0/0x0/0x0/0x0/0x0)
[    3.289347] snd_hda_codec_conexant hdaudioC1D0:    mono: mono_out=0x0
[    3.289347] snd_hda_codec_conexant hdaudioC1D0:    inputs:
[    3.289349] snd_hda_codec_conexant hdaudioC1D0:      Front Mic=0x1a
[    3.289350] snd_hda_codec_conexant hdaudioC1D0:      Rear Mic=0x1b
[    3.294720] iwlwifi 0000:c3:00.0: Detected crf-id 0x3617, cnv-id 0x100530 wfpm id 0x80000000
[    3.294727] iwlwifi 0000:c3:00.0: PCI dev 2723/0084, rev=0x340, rfid=0x10a100
[    3.294730] iwlwifi 0000:c3:00.0: Detected Intel(R) Wi-Fi 6 AX200 160MHz
[    3.294923] input: HDA Digital PCBeep as /devices/pci0000:00/0000:00:08.1/0000:c4:00.6/sound/card1/input9
[    3.297106] iwlwifi 0000:c3:00.0: TLV_FW_FSEQ_VERSION: FSEQ Version: 89.3.35.37
[    3.297291] iwlwifi 0000:c3:00.0: firmware: failed to load iwl-debug-yoyo.bin (-2)
[    3.297367] iwlwifi 0000:c3:00.0: firmware: failed to load iwl-debug-yoyo.bin (-2)
[    3.297375] iwlwifi 0000:c3:00.0: firmware: failed to load iwl-debug-yoyo.bin (-2)
[    3.297377] iwlwifi 0000:c3:00.0: loaded firmware version 77.2753b721.0 cc-a0-77.ucode op_mode iwlmvm
[    3.300812] Bluetooth: hci0: Found device firmware: intel/ibt-20-1-3.sfi
[    3.300821] Bluetooth: hci0: Boot Address: 0x24800
[    3.300822] Bluetooth: hci0: Firmware Version: 132-3.24
[    3.300824] Bluetooth: hci0: Firmware already loaded
[    3.310420] Bluetooth: hci0: HCI LE Coded PHY feature bit is set, but its usage is not supported.
[    3.334249] kvm_amd: TSC scaling supported
[    3.334251] kvm_amd: Nested Virtualization enabled
[    3.334252] kvm_amd: Nested Paging enabled
[    3.334252] kvm_amd: LBR virtualization supported
[    3.334257] kvm_amd: Virtual VMLOAD VMSAVE supported
[    3.334258] kvm_amd: Virtual GIF supported
[    3.334258] kvm_amd: Virtual NMI enabled
[    3.345843] MCE: In-kernel MCE decoding enabled.
[    3.370523] usbcore: registered new interface driver snd-usb-audio
[    3.440399] hid-generic 0003:04D9:A088.0001: input,hidraw0: USB HID v1.11 Keyboard [HID 04d9:a088] on usb-0000:c6:00.4-1/input0
[    3.440434] input: HD-Audio Generic HDMI/DP,pcm=7 as /devices/pci0000:00/0000:00:08.1/0000:c4:00.1/sound/card0/input6
[    3.440524] input: HD-Audio Generic Front Mic as /devices/pci0000:00/0000:00:08.1/0000:c4:00.6/sound/card1/input10
[    3.440590] input: HID 04d9:a088 System Control as /devices/pci0000:00/0000:00:08.3/0000:c6:00.4/usb7/7-1/7-1:1.1/0003:04D9:A088.0002/input/input14
[    3.440593] input: HD-Audio Generic HDMI/DP,pcm=8 as /devices/pci0000:00/0000:00:08.1/0000:c4:00.1/sound/card0/input7
[    3.440626] input: HD-Audio Generic Rear Mic as /devices/pci0000:00/0000:00:08.1/0000:c4:00.6/sound/card1/input11
[    3.481983] intel_rapl_common: Found RAPL domain package
[    3.481986] intel_rapl_common: Found RAPL domain core
[    3.483060] amd_atl: AMD Address Translation Library initialized
[    3.500388] input: HID 04d9:a088 Consumer Control as /devices/pci0000:00/0000:00:08.3/0000:c6:00.4/usb7/7-1/7-1:1.1/0003:04D9:A088.0002/input/input15
[    3.500422] input: HD-Audio Generic HDMI/DP,pcm=9 as /devices/pci0000:00/0000:00:08.1/0000:c4:00.1/sound/card0/input8
[    3.500490] input: HD-Audio Generic Headphone Front as /devices/pci0000:00/0000:00:08.1/0000:c4:00.6/sound/card1/input12
[    3.500545] input: HD-Audio Generic Front Headphone Surround as /devices/pci0000:00/0000:00:08.1/0000:c4:00.6/sound/card1/input13
[    3.500665] input: HID 04d9:a088 Mouse as /devices/pci0000:00/0000:00:08.3/0000:c6:00.4/usb7/7-1/7-1:1.1/0003:04D9:A088.0002/input/input16
[    3.501515] hid-generic 0003:04D9:A088.0002: input,hidraw1: USB HID v1.11 Mouse [HID 04d9:a088] on usb-0000:c6:00.4-1/input1
[    3.501597] input: POROSVOC POROSVOC as /devices/pci0000:00/0000:00:08.3/0000:c6:00.0/usb3/3-4/3-4:1.2/0003:1D6B:A4A7.0003/input/input17
[    3.524446] iwlwifi 0000:c3:00.0: Detected RF HR B3, rfid=0x10a100
[    3.556474] hid-generic 0003:1D6B:A4A7.0003: input,hidraw2: USB HID v1.11 Device [POROSVOC POROSVOC] on usb-0000:c6:00.0-4/input2
[    3.590055] iwlwifi 0000:c3:00.0: base HW address: a8:59:5f:97:9f:c8
[    4.190834] [drm] amdgpu kernel modesetting enabled.
[    4.193077] amdgpu: Virtual CRAT table created for CPU
[    4.193085] amdgpu: Topology: Add CPU node
[    4.193195] amdgpu 0000:c4:00.0: enabling device (0006 -> 0007)
[    4.193212] [drm] initializing kernel modesetting (IP DISCOVERY 0x1002:0x150E 0x1002:0x0124 0xC1).
[    4.193218] [drm] register mmio base: 0xDC400000
[    4.193219] [drm] register mmio size: 524288
[    4.196056] [drm] add ip block number 0 <soc21_common>
[    4.196057] [drm] add ip block number 1 <gmc_v11_0>
[    4.196058] [drm] add ip block number 2 <ih_v6_1>
[    4.196059] [drm] add ip block number 3 <psp>
[    4.196060] [drm] add ip block number 4 <smu>
[    4.196061] [drm] add ip block number 5 <dm>
[    4.196062] [drm] add ip block number 6 <gfx_v11_0>
[    4.196062] [drm] add ip block number 7 <sdma_v6_0>
[    4.196063] [drm] add ip block number 8 <vcn_v4_0_5>
[    4.196064] [drm] add ip block number 9 <jpeg_v4_0_5>
[    4.196065] [drm] add ip block number 10 <mes_v11_0>
[    4.196065] [drm] add ip block number 11 <vpe_v6_1>
[    4.196089] amdgpu 0000:c4:00.0: amdgpu: Fetched VBIOS from VFCT
[    4.196091] amdgpu: ATOM BIOS: 113-STRIXEMU-001
[    4.201625] amdgpu 0000:c4:00.0: amdgpu: VPE: collaborate mode false
[    4.201738] Console: switching to colour dummy device 80x25
[    4.201768] amdgpu 0000:c4:00.0: amdgpu: Trusted Memory Zone (TMZ) feature disabled as experimental (default)
[    4.201809] [drm] vm size is 262144 GB, 4 levels, block size is 9-bit, fragment size is 9-bit
[    4.201819] amdgpu 0000:c4:00.0: amdgpu: VRAM: 4096M 0x0000008000000000 - 0x00000080FFFFFFFF (4096M used)
[    4.201820] amdgpu 0000:c4:00.0: amdgpu: GART: 512M 0x00007FFF00000000 - 0x00007FFF1FFFFFFF
[    4.201833] [drm] Detected VRAM RAM=4096M, BAR=4096M
[    4.201834] [drm] RAM width 128bits LPDDR5
[    4.202573] [drm] amdgpu: 4096M of VRAM memory ready
[    4.202574] [drm] amdgpu: 13837M of GTT memory ready.
[    4.202586] [drm] GART: num cpu pages 131072, num gpu pages 131072
[    4.202661] [drm] PCIE GART of 512M enabled (table at 0x00000080FFB00000).
[    4.202995] [drm] Loading DMUB firmware via PSP: version=0x09001B00
[    4.203133] [drm] Found VCN firmware Version ENC: 1.23 DEC: 9 VEP: 0 Revision: 9
[    4.226090] amdgpu 0000:c4:00.0: amdgpu: reserve 0x8900000 from 0x80e0000000 for PSP TMR
[    4.226746] iwlwifi 0000:c3:00.0 wlp195s0: renamed from wlan0
[    4.231003] EXT4-fs (nvme0n1p2): mounted filesystem 987fffe7-b89b-49ea-9d79-273d48d52e4d r/w with ordered data mode. Quota mode: none.
[    4.236287] EXT4-fs (dm-3): mounted filesystem 7d591056-76a5-48c1-994a-f9e1e7f5da6c r/w with ordered data mode. Quota mode: none.
[    4.242351] EXT4-fs (dm-1): mounted filesystem b78f5960-03c3-4865-9e07-b6b0b956c62c r/w with ordered data mode. Quota mode: none.
[    4.243970] EXT4-fs (dm-4): mounted filesystem 8357c556-5a4d-4b4c-88a7-32f8b0a8e53a r/w with ordered data mode. Quota mode: none.
[    4.250375] systemd-journald[550]: Received client request to flush runtime journal.
[    4.276466] audit: type=1400 audit(1758997813.855:2): apparmor="STATUS" operation="profile_load" profile="unconfined" name=4D6F6E676F444220436F6D70617373 pid=962 comm="apparmor_parser"
[    4.276483] audit: type=1400 audit(1758997813.855:3): apparmor="STATUS" operation="profile_load" profile="unconfined" name="foliate" pid=982 comm="apparmor_parser"
[    4.276505] audit: type=1400 audit(1758997813.855:4): apparmor="STATUS" operation="profile_load" profile="unconfined" name="element-desktop" pid=977 comm="apparmor_parser"
[    4.276525] audit: type=1400 audit(1758997813.855:5): apparmor="STATUS" operation="profile_load" profile="unconfined" name="ch-run" pid=971 comm="apparmor_parser"
[    4.277274] audit: type=1400 audit(1758997813.855:6): apparmor="STATUS" operation="profile_load" profile="unconfined" name="epiphany" pid=978 comm="apparmor_parser"
[    4.277277] audit: type=1400 audit(1758997813.855:7): apparmor="STATUS" operation="profile_load" profile="unconfined" name="1password" pid=960 comm="apparmor_parser"
[    4.277279] audit: type=1400 audit(1758997813.855:8): apparmor="STATUS" operation="profile_load" profile="unconfined" name="balena-etcher" pid=965 comm="apparmor_parser"
[    4.277281] audit: type=1400 audit(1758997813.855:9): apparmor="STATUS" operation="profile_load" profile="unconfined" name="evolution" pid=979 comm="apparmor_parser"
[    4.277282] audit: type=1400 audit(1758997813.855:10): apparmor="STATUS" operation="profile_load" profile="unconfined" name="busybox" pid=968 comm="apparmor_parser"
[    4.316173] 8021q: 802.1Q VLAN Support v1.8
[    4.348295] Realtek Internal NBASE-T PHY r8169-0-c200:00: attached PHY driver (mii_bus:phy_addr=r8169-0-c200:00, irq=MAC)
[    4.500968] amdgpu 0000:c4:00.0: amdgpu: RAS: optional ras ta ucode is not available
[    4.504663] amdgpu 0000:c4:00.0: amdgpu: RAP: optional rap ta ucode is not available
[    4.504665] amdgpu 0000:c4:00.0: amdgpu: SECUREDISPLAY: securedisplay ta ucode is not available
[    4.524523] r8169 0000:c2:00.0 enp194s0: Link is Down
[    4.526511] amdgpu 0000:c4:00.0: amdgpu: SMU is initialized successfully!
[    4.526517] [drm] Seamless boot condition check passed
[    4.527600] [drm] Display Core v3.2.301 initialized on DCN 3.5
[    4.527601] [drm] DP-HDMI FRL PCON supported
[    4.530609] [drm] DMUB hardware initialized: version=0x09001B00
[    4.573438] snd_hda_intel 0000:c4:00.1: bound 0000:c4:00.0 (ops amdgpu_dm_audio_component_bind_ops [amdgpu])
[    4.608783] kfd kfd: amdgpu: Allocated 3969056 bytes on gart
[    4.608791] kfd kfd: amdgpu: Total number of KFD nodes to be created: 1
[    4.609006] amdgpu: Virtual CRAT table created for GPU
[    4.610867] amdgpu: Topology: Add dGPU node [0x150e:0x1002]
[    4.610868] kfd kfd: amdgpu: added device 1002:150e
[    4.610874] amdgpu 0000:c4:00.0: amdgpu: SE 1, SH per SE 2, CU per SH 8, active_cu_number 16
[    4.610877] amdgpu 0000:c4:00.0: amdgpu: ring gfx_0.0.0 uses VM inv eng 0 on hub 0
[    4.610878] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.0.0 uses VM inv eng 1 on hub 0
[    4.610878] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.1.0 uses VM inv eng 4 on hub 0
[    4.610879] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.2.0 uses VM inv eng 6 on hub 0
[    4.610879] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.3.0 uses VM inv eng 7 on hub 0
[    4.610879] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.0.1 uses VM inv eng 8 on hub 0
[    4.610880] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.1.1 uses VM inv eng 9 on hub 0
[    4.610880] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.2.1 uses VM inv eng 10 on hub 0
[    4.610881] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.3.1 uses VM inv eng 11 on hub 0
[    4.610881] amdgpu 0000:c4:00.0: amdgpu: ring sdma0 uses VM inv eng 12 on hub 0
[    4.610881] amdgpu 0000:c4:00.0: amdgpu: ring vcn_unified_0 uses VM inv eng 0 on hub 8
[    4.610882] amdgpu 0000:c4:00.0: amdgpu: ring jpeg_dec_0 uses VM inv eng 1 on hub 8
[    4.610882] amdgpu 0000:c4:00.0: amdgpu: ring mes_kiq_3.1.0 uses VM inv eng 13 on hub 0
[    4.610883] amdgpu 0000:c4:00.0: amdgpu: ring vpe uses VM inv eng 4 on hub 8
[    4.611590] [drm] ring gfx_32768.1.1 was added
[    4.612263] [drm] ring compute_32768.2.2 was added
[    4.612541] [drm] ring sdma_32768.3.3 was added
[    4.612560] [drm] ring gfx_32768.1.1 ib test pass
[    4.612577] [drm] ring compute_32768.2.2 ib test pass
[    4.612600] [drm] ring sdma_32768.3.3 ib test pass
[    4.613963] amdgpu 0000:c4:00.0: amdgpu: Runtime PM not available
[    4.614455] [drm] Initialized amdgpu 3.61.0 for 0000:c4:00.0 on minor 0
[    4.622291] [drm] pre_validate_dsc:1622 MST_DSC dsc precompute is not needed
[    4.708624] Console: switching to colour frame buffer device 240x67
[    4.746720] amdgpu 0000:c4:00.0: [drm] fb0: amdgpudrmfb frame buffer device
[    5.077326] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[    5.077331] Bluetooth: BNEP filters: protocol multicast
[    5.077336] Bluetooth: BNEP socket layer initialized
[    5.078122] Bluetooth: MGMT ver 1.23
[    5.083355] NET: Registered PF_ALG protocol family
[    5.091914] nvme nvme0: using unchecked data buffer
[    5.094497] block nvme0n1: No UUID available providing old NGUID
[    5.110004] Bluetooth: RFCOMM TTY layer initialized
[    5.110009] Bluetooth: RFCOMM socket layer initialized
[    5.110011] Bluetooth: RFCOMM ver 1.11
[    5.119435] NET: Registered PF_QIPCRTR protocol family
[    7.480394] r8169 0000:c2:00.0 enp194s0: Link is Up - 1Gbps/Full - flow control rx/tx

As you can see, the ACPI BIOS Error (bug) lines are gone. Configuring systemd-logind to handle power button events with a poweroff and then rebooting has no effect: I don’t think that power button is detected at all. You’ll have to tell me if the ACPI table has the right entry or not, but it should be listed above if there are no errors, right?

Additional kernel messages after trying to suspend

[continues from above]
[  270.878212] PM: suspend entry (s2idle)
[  270.882287] Filesystems sync: 0.004 seconds
[  270.884464] Freezing user space processes
[  270.885628] Freezing user space processes completed (elapsed 0.001 seconds)
[  270.885631] OOM killer disabled.
[  270.885632] Freezing remaining freezable tasks
[  270.886706] Freezing remaining freezable tasks completed (elapsed 0.001 seconds)
[  270.886709] printk: Suspending console(s) (use no_console_suspend to debug)
[  270.889884] r8169 0000:c2:00.0 enp194s0: Link is Down
[  272.996425] pcieport 0000:00:02.5: Data Link Layer Link Active not set in 100 msec
[  272.996501] iwlwifi 0000:c3:00.0: Unable to change power state from D3cold to D0, device inaccessible
[  273.000379] pcieport 0000:00:02.3: Data Link Layer Link Active not set in 100 msec
[  273.000431] r8169 0000:c2:00.0: Unable to change power state from D3cold to D0, device inaccessible
[  273.061622] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.065507] [drm] PCIE GART of 512M enabled (table at 0x00000080FFB00000).
[  273.065572] amdgpu 0000:c4:00.0: amdgpu: SMU is resuming...
[  273.072764] amdgpu 0000:c4:00.0: amdgpu: SMU is resumed successfully!
[  273.097122] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.105004] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.105558] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.106104] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.106640] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.107167] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.107693] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.108220] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.108724] r8169 0000:c2:00.0 enp194s0: rtl_ocp_gphy_cond == 1 (loop: 10, delay: 25).
[  273.140640] nvme nvme0: 24/0/0 default/read/poll queues
[  273.233649] amdgpu 0000:c4:00.0: amdgpu: ring gfx_0.0.0 uses VM inv eng 0 on hub 0
[  273.233660] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.0.0 uses VM inv eng 1 on hub 0
[  273.233661] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.1.0 uses VM inv eng 4 on hub 0
[  273.233663] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.2.0 uses VM inv eng 6 on hub 0
[  273.233664] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.3.0 uses VM inv eng 7 on hub 0
[  273.233665] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.0.1 uses VM inv eng 8 on hub 0
[  273.233666] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.1.1 uses VM inv eng 9 on hub 0
[  273.233667] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.2.1 uses VM inv eng 10 on hub 0
[  273.233668] amdgpu 0000:c4:00.0: amdgpu: ring comp_1.3.1 uses VM inv eng 11 on hub 0
[  273.233670] amdgpu 0000:c4:00.0: amdgpu: ring sdma0 uses VM inv eng 12 on hub 0
[  273.233671] amdgpu 0000:c4:00.0: amdgpu: ring vcn_unified_0 uses VM inv eng 0 on hub 8
[  273.233672] amdgpu 0000:c4:00.0: amdgpu: ring jpeg_dec_0 uses VM inv eng 1 on hub 8
[  273.233673] amdgpu 0000:c4:00.0: amdgpu: ring mes_kiq_3.1.0 uses VM inv eng 13 on hub 0
[  273.233675] amdgpu 0000:c4:00.0: amdgpu: ring vpe uses VM inv eng 4 on hub 8
[  273.369283] [drm] ring gfx_32770.1.1 was added
[  273.369849] [drm] ring compute_32770.2.2 was added
[  273.370141] [drm] ring sdma_32770.3.3 was added
[  273.370183] [drm] ring gfx_32770.1.1 ib test pass
[  273.370226] [drm] ring compute_32770.2.2 ib test pass
[  273.370248] [drm] ring sdma_32770.3.3 ib test pass
[  273.964977] usb 3-4: reset full-speed USB device number 2 using xhci_hcd
[  274.083153] Realtek Internal NBASE-T PHY r8169-0-c200:00: r8169_apply_firmware failed: -110
[  274.748255] Realtek Internal NBASE-T PHY r8169-0-c200:00: phy_poll_reset failed: -110
[  274.779081] r8169 0000:c2:00.0 enp194s0: No native access to PCI extended config space, falling back to CSI
[  274.836279] r8169 0000:c2:00.0 enp194s0: Link is Down
[  274.837081] OOM killer enabled.
[  274.837083] Restarting tasks ... done.
[  274.837652] random: crng reseeded on system resumption
[  274.842274] PM: suspend exit

The above messages reflect a failed systemctl suspend, and an inability to power up the WiFi (iwlwifi) and gigabit ethernet (r8169) adapters after the suspend gets aborted. As the kernel docs say,

The transition from D3cold to D0 occurs when the supply voltage is provided to the device (i.e. power is restored). In that case the device returns to D0 with a full power-on reset sequence and the power-on defaults are restored to the device by hardware just as at initial power up.

Not sure how much further I can take this. I hope the feedback is useful to the beelink devs.

(Yes, I do have recent firmware-iwlwifi and firmware-realtek installed: version 20250410-2 for both.)

AndrewC

Beelink CS-June Trying with Debian 13 acpi-support, acpid, and acpi_listen too, and that does not resolve the issue. acpi_listen shows nothing for the power button, although it does detect cursor keys (haha, who knew those were special?). Suspending via systemd still fails and messes up iwlwifi and r8169, in the same way.

All the testing above I’ve carried out with Enable ACPI Auto Configuration enabled in the BIOS. I think that’s correct.

Beelink CS-Bettie

AndrewC
Thank you for your response.
We have consulted our R&D team, and the network issue is currently being resolved. We appreciate your patience. We will keep you informed of any updates.

AndrewC

Beelink CS-Bettie Thanks again for passing on the details. The networking issue after recovery from (failed) suspends is quite serious. I hope a fix will also address the failing suspend itself. They may or may not be related.

Power button issue

Looking just now into the well known power button issue with Linux on the SER9. I haven’t found a fix yet, but the problem seems to lie between the DSDT and the kernel’s interpretation of it. Rationale: on a working AMD system (a Framework 16 laptop), I see the buttons detected early on during boot, and the power button, PNP0C0C, has been associated with the correct driver (button):

# working framework laptop, dmesg output
[    1.094309] input: Lid Switch as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/device:4b/PNP0C09:00/PNP0C0D:00/input/input0
[    1.094346] ACPI: button: Lid Switch [LID0]
[    1.094393] input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input1
[    1.094417] ACPI: button: Power Button [PWRB]

root@framework16:~# cat '/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/uevent'
DRIVER=button
MODALIAS=acpi:PNP0C0C:

but no detection of any PNP0 devices during early boot, and no driver association.

root@ser9:~# cat '/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/uevent'
MODALIAS=

I have tried combinations of kernel parameters like acpi_osi=! acpi_osi='Windows 2022' (docs) at boot, but I haven’t been able to find any “magic” values that make the power button work. Correct behaviour does not seem to be dependent on the value the OS reports to the ACPI firmware, at least: folks watching this could try other values for acpi_os_name or acpi_osi, but I suspect you;d be wasting your time for this hardware (looking at the DSDT).

What is really weird is that the decompiled .dsl output from

cat  /sys/firmware/acpi/tables/DSDT > dsdt.dat   # binary, direct from firmware
iasl -d dsdt.dat   # in acpica-tools on Debian
less dsdt.dsl   # written by above, text file

does contain an entry for PNP0C0C, but it’s different from (and more complex than) the working one from the framework 16:

## Framework 16 (simpler, power button detected by kernel)

    Scope _SB
    {
        /* .... */
        Device (PWRB)
        {
            Name (_HID, EisaId ("PNP0C0C") /* Power Button Device */)  // _HID: Hardware ID
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Return (0x0F)
            }
        }

## Bee-link SER9 (more complex, power button not detected by kernel)

    Scope (_SB)
    {
         /*...*/
        Device (PWRB)
        {
            Name (_HID, EisaId ("PNP0C0C") /* Power Button Device */)  // _HID: Hardware ID
            Name (_DDN, "Power button")  // _DDN: DOS Device Name
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Name (PSTA, Zero)
                M460 ("PLA-ASL-\\_SB.PWRB._STA = 0xB\n", Zero, Zero, Zero, Zero, Zero, Zero)
                If ((CMBS == Zero))
                {
                    PSTA = 0x0B
                }

                Return (PSTA) /* \_SB_.PWRB._STA.PSTA */
            }
        }

Unfortunately, Debian have made it difficult to override the DSDT (but maybe this still works?), and recompilation gives a lot of errors that I have no idea how to fix because this stuff is new to me. I’ll back off from messing with that right now, at my level of expertise! Anyone with an affected SER9 have any ideas in this area?

(The ideal fix is for R&D to have a good hard look at the DSDT again (pretty please!))

Beelink CS-Bettie

AndrewC
Thank you for following up.

I have already shared your new information with our R&D team, and we are currently awaiting their response.
Thank you for sharing.

« Previous Page
